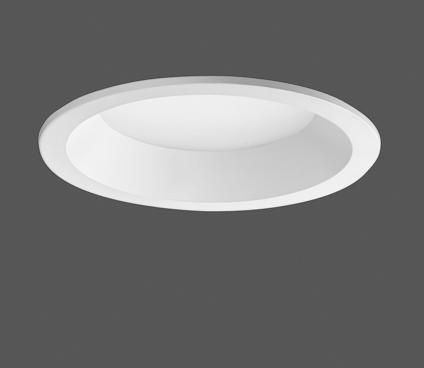

Spittler 822720864001 LED recessed downlight 4000K 18W DALI diffuse light optics

In stock
SKU: 129648
€182.70
Into a basketIn the basketGo

Overview

Recessed downlight DL 220 superbasic LED with high-performance LED, luminaire output 18W, coherent continuation of the classic product in innovative LED technology, is a universal design tool thanks to its clear design, designed for a wide range of application and planning variations, light-tight luminaire housing made of die-cast aluminum, reflector cone made of injection-molded ABS in white with light-tight connection to the LED module, scratch-resistant surface finish thanks to high-quality powder coating after diffuse light optics for optimal scattering and a homogeneously illuminated light exit surface, with recessed diffuse light optics, low installation height due to particularly flat design, direct beam, homogeneous luminance distribution across the entire light exit surface, consistently harmonious ceiling image using white reflective elements, directed light creates an atmospheric room atmosphere, high-quality thermal management thanks to die-cast aluminum heat sink with FAST (Flexible Air Stream Technology),

Property Value
Suitable for wall mounting: No
Suitable for pendant suspension: No
Suitable for ceiling mounting: Yes
Suitable for recessed mounting: Yes
Suitable for surface mounting: No
Adjustability: not adjustable
Light source: LED not replaceable
With Light source: Yes
Socket: other
Suitable for number of light sources: 1
Suitable for lamp power: 16 - 16 W
Lamp power for Multiwatt: not applicable
Operating device: LED operating device current-controlled
With operating device: Yes
Type of dimming: DALI
Emergency light component integrated: No
With light sensor: No
With motion detector: No
Nominal voltage: 220 - 240 V
Nominal current: 75 - 82 mA
System power: 18 W
Color temperature: 4000 - 4000 K
Housing material: Steel
Surface finish: other
Housing colour: white
Cover material: opal plastic
Suitable for computer workstations: No
Grid finish: without
Reflector: white
Light distribution: symmetrical
Light emission: direct
Beam angle: extremely wide beam >80°
Outer diameter: 220 mm
Installation depth: 95 mm
Installation diameter: 206 mm
Protection class: I
Protection type (IP): IP20
Impact resistance: IK07
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with Roof': No
Ambient temperature: 10 - 35 °C
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
Voltage type: AC/DC
Effective luminous flux: 1950 lm
Light color: white
Color rendering index CRI: 80-89

Characteristics

ManufacturerSpittler
HAN822720864001
GTIN4046075045801
Surface finishOther
Execution of the gridWithout
Outer diameter220 mm
Operating deviceLED control gear current controlled
Installation diameter206 mm
Installation depth95 mm
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for lamp power16 - 16 W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 - 240V
Rated current75 - 82mA
ReflectorWhite
Impact resistanceIK07
Protection classI
Voltage typeAC/DC
System performance18W
Ambient temperature10 - 35 °C
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialSteel
