Spittler 8414151183480 LED recessed spotlight 4000K 20W converter spot

Spittler 8414151183480 LED recessed spotlight 4000K 20W converter spot

In stock

SKU: 314269

Price on request

€86.91

€0

Overview

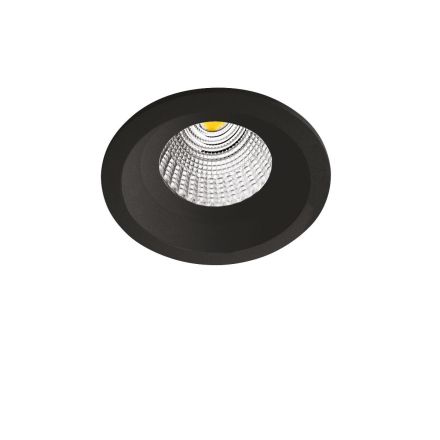

Recessed spotlight NV 414 with high-performance LED, luminaire output 20W, spotlight head and mounting ring made of die-cast aluminum, scratch-resistant surface finish thanks to high-quality powder coating after high-gloss spherical facet reflector made of pure aluminum for maximum luminaire efficiency and neutral color rendering, narrow beam radiation characteristic (spot), high-performance LED with passive cooling,

Property	Value
Suitable for wall mounting:	No
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	Yes
Suitable for recessed mounting:	Yes
Suitable for surface mounting:	No
Adjustability:	not adjustable
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Suitable for lamp power:	18 - 18 W
Lamp power at Multiwatt:	not applicable
Operating device:	LED operating device, current-controlled
With operating device:	Yes
Type of dimming:	not dimmable
Emergency lighting component integrated:	No
With light sensor:	No
With motion detector:	No
Nominal voltage:	220 - 240 V
Nominal current:	83 - 91 mA
System power:	20 W
Color temperature:	4000 - 4000 K
Housing material:	aluminum
Surface finish:	matt
Housing color:	black
Cover material:	transparent glass
Suitable for computer workstations:	No
Grid finish:	without
Reflector:	high gloss
Light distribution:	symmetrical
Light emission:	direct
Beam angle:	narrow beam 10-20°
Outer diameter:	138 mm
Installation depth:	105 mm
Installation diameter:	125 mm
Protection class:	II
Protection class (IP):	IP20
Impact resistance:	IK02
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	10 - 35 °C
Glow wire test according to IEC 60695-2-10:	650 °C - 30 s
Type of voltage:	AC
Effective luminous flux:	1880 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB8,41415E+12

Manufacturer

HAN8414151183480

GTIN4052075170870

Surface finishFrosted

Execution of the gridWithout

Beam angleNarrow beam 10-20°

Outer diameter138 mm

Operating deviceLED control gear current controlled

Installation diameter125 mm

Installation depth105 mm

Color temperature4000 - 4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power18 - 18 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorBlack

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 - 240V

Rated current83 - 91mA

ReflectorHigh gloss

Impact resistanceIK02

Protection classII

Voltage typeAC

System performance20W

Ambient temperature10 - 35 °C

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
