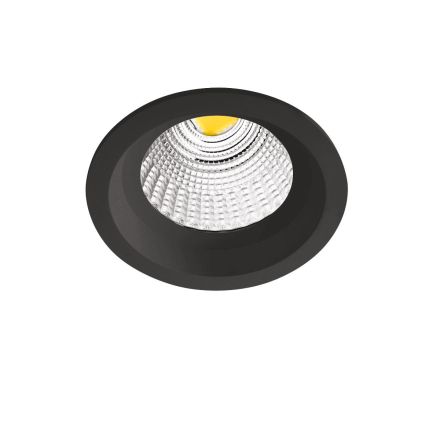

Spittler 8417161323380 LED recessed spotlight 3000K 35W converter medium

Spittler 8417161323380 LED recessed spotlight 3000K 35W converter medium

In stock

SKU: 314258

Price on request

€156.68

€0

Overview

Recessed spotlight NV 417 with high-performance LED, luminaire output 35W, spotlight head and mounting ring made of die-cast aluminum, scratch-resistant surface finish thanks to high-quality powder coating after high-gloss spherical facet reflector made of pure aluminum for maximum luminaire efficiency and neutral color rendering, radiation characteristics with medium spread (medium), high-performance LED with passive cooling,

Property	Value
Suitable for wall mounting:	No
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	Yes
Suitable for recessed mounting:	Yes
Suitable for surface mounting:	No
Adjustability:	not adjustable
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Suitable for lamp power:	33 - 33 W
Lamp power at Multiwatt:	not applicable
Operating device:	LED operating device, current-controlled
With operating device:	Yes
Type of dimming:	not dimmable
Emergency lighting component integrated:	No
With light sensor:	No
With motion detector:	No
Nominal voltage:	220 - 240 V
Nominal current:	146 - 159 mA
System power:	35 W
Color temperature:	3000 - 3000 K
Housing material:	aluminum
Surface finish:	matt
Housing color:	black
Cover material:	transparent glass
Suitable for computer workstations:	No
Grid finish:	without
Reflector:	high gloss
Light distribution:	symmetrical
Light emission:	direct
Beam angle:	medium beam 20-40°
Outer diameter:	165 mm
Installation depth:	137 mm
Installation diameter:	150 mm
Protection class:	II
Protection class (IP):	IP20
Impact resistance:	IK02
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	10 - 35 °C
Glow wire test according to IEC 60695-2-10:	650 °C - 30 s
Type of voltage:	AC
Effective luminous flux:	3720 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB8,41716E+12

Manufacturer

HAN8417161323380

GTIN4052075169041

Surface finishFrosted

Execution of the gridWithout

Beam angleMedium beam 20-40°

Outer diameter165 mm

Operating deviceLED control gear current controlled

Installation diameter150 mm

Installation depth137 mm

Color temperature3000 - 3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power33 - 33 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorBlack

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 - 240V

Rated current146 - 159mA

ReflectorHigh gloss

Impact resistanceIK02

Protection classII

Voltage typeAC

System performance35W

Ambient temperature10 - 35 °C

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
