Catalog

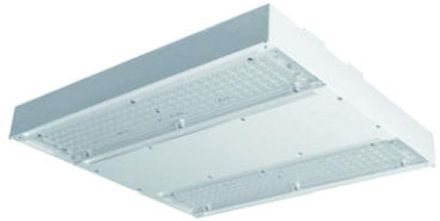

Spittler 06272687 Hall pendant luminaire 4000 K 205 W LED symmetrical extra-wide diffuser optics

In stock
SKU: 314399
€855.72
Into a basketIn the basketGo

Overview

LED pendant lights for industrial lighting for indoor and outdoor spaces, consisting of: Die-cast aluminum housing painted with polymer powder paint in grainy gray after previous chemical surface treatment, diffuser with integrated optics made of transparent technopolymer, protected against UV rays and heat, optical unit consisting of lenses specially designed for maximum performance and optimal light distribution. The lenses are made of a specific polycarbonate optic that ensures the highest possible transmittance, including resistance to UV rays and heat, symmetrical optics, age-resistant silicone gasket made from a single cast (without seams) with high compensation performance and high resilience, cable compartment cover made of high-performance polymer, power connection through quick-connect socket-plug external IP66, which allows connection to the mains without opening the lamp, made of PA66 with silver-plated brass contacts, for cables 9 - 12 mm, dimmable electronic ballasts (DALI), light source consists of several LED modules, hanging hook made of galvanized steel, external screws made of stainless steel, when used in rooms where natural or mineral oils are present or in atmospheres that are incompatible with polycarbonate, a protective glass must be used, which is available as an accessory.

Features Value
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 205 W
Lamp wattage for multiwatt: not applicable
Operating device: EVG dimmable
With operating device: Yes
Type of dimming: DALI
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Type of voltage: AC/DC
Nominal voltage: 220 - 240 V
Nominal current: 700 - 700 mA
Direct/indirect components can be controlled separately: No
Material of the housing: Aluminum
Housing color: white
Mounting type: Pendant
With protective cover: No
Design of the grid: without
Reflector: without
Material of the reflector: without reflector
Light distribution: symmetrical
Light emission: direct
Length: 460 mm
Width: 418 mm
Height/depth: 160 mm
Protection class: I
Protection type (IP): IP66
Impact resistance: IK07
Ball-proof: Yes
Fire protection 'D': Yes
Glow wire test according to IEC 60695-2-10: 750 °C - 5 s
Effective luminous flux: 28342 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 80-89

Characteristics

HAB6272687
ManufacturerSpittler
HAN06272687
GTIN8021944109033
Execution of the gridWithout
Operating deviceElectronic ballast di mmable
Width418 mm
Direct/indirect components can be controlled separatelyNo
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for emergency lightingNo
Housing colorWhite
Height/Depth160 mm
Lamp power205W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length460 mm
With operating deviceYes
With light sourceYes
With protective coverNo
Mounting typePendulum
Nominal voltage220 - 240V
Rated current700 - 700mA
ReflectorWithout
Impact resistanceIK07
Protection classI
Voltage typeAC/DC
Housing materialAluminum
