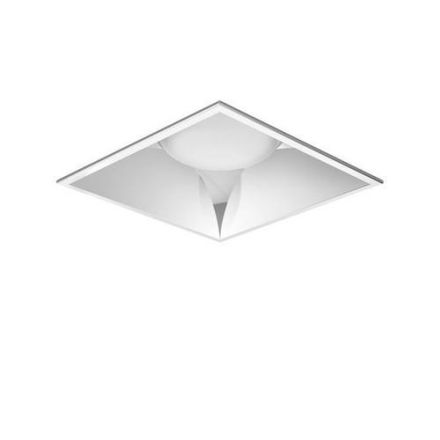

Spittler DL Square Mdi 13W 3000K DALI SL10 LED recessed light

In stock
SKU: 845083
€123.83
Into a basketIn the basketGo

Overview

Square modular LED recessed downlight for indoor use, consisting of: LED module, die-cast aluminum heat sink, reflector with integrated cover ring, diffuser and external supply unit. All components can be replaced later without tools. Integrated diffuser with optimal scattering for very high uniformity. High-quality thermal management thanks to die-cast aluminum heat sink with FAST 'Flexible Air Stream Technology'. Incl. electronic converter. DALI dimmable. Suitable for ceiling panel thicknesses of 1-25 mm. Tool-free, installation-friendly assembly. Wieland connector. Additional equipment: High-gloss modular radial louvre reflector with integrated cover frame made of metallized ABS injection molding with light-tight connection to LED module. Reflector with integrated anti-glare ring made of ABS injection molding in white with light-tight connection to LED module and frosted plastic pane (IP54).

Property Value
System power: 12 W
Rated luminous flux: 1640 lm
Housing color: Silver
Housing material: Aluminum
Protection class (IP): IP20
Socket: without
Light source: LED not replaceable
Protection class: I
With light source: yes
Installation height/depth: 80 mm
With operating device: no
Suitable for recessed mounting: yes
Length: 190 mm
Width: 190 mm
Height/depth: 84 mm
With motion detector: no
Suitable for wall mounting: no
Color temperature: 3000 K
Nominal voltage: 220 to 240 V
Color rendering index CRI: 90-100
Suitable for ceiling mounting: no
Light distribution: symmetrical
Suitable for lamp power: 12 to 13 W
Operating device: LED operating device, current-controlled
Beam angle: extremely wide beam >80°
Impact resistance: IK07
Luminaire with limited surface temperature D-mark according to EN 60598-2-24: yes
Reflector: high-gloss
Suitable for number of light sources: 1
Installation width: 190 mm
Installation length: 190 mm
Cover material: transparent glass
Covering of the lamp with thermal insulation material possible: no
Voltage type: AC/DC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for platform/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: no
Suitable for cable system: no
Surface protection: other
Surface brushed: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (integrated in the device): no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: Diffuser lens/optics/panel
Light emission: direct
Rated ambient temperature according to IEC 62722-2-1: 10 to 40 °C
Type of wiring: Termination
Number of poles: 5
Conductor cross-section: 2.5 mm²
Connectable conductor cross-section: 2.5 mm²
Connection type: Plug-in terminal
Luminous efficacy: 148 lm/W
Suitable for computer workstations in accordance with EN 12464-1: no
Glow wire test in accordance with IEC 60695-2-11: 650 °C - 30 s
Photobiological safety according to EN 62471: RG1
Color consistency (McAdam ellipse): SDCM3
Replaceable operating device: yes
DALI-2 dimming: yes
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp.: 96.4 %
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.: 95.5 %
Luminous flux maintenance at average service life 100,000 h at 25 °C ambient temp.: 92.8 %
Constant luminous flux control: yes
Adjustable color temperature: no
Adjustable luminous flux: continuously
Adjustable beam angle: no
Max. Number of luminaires circuit breaker B16: 36
Max. Number of lights circuit breaker C16: 60
Integrated emergency power supply: no
IFTTT support available: no
Glare limitation (UGR): 20.3
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no

Characteristics

Connectable conductor cross-section2.5 mm²
Rated luminous flux1640 lm
HABDL Square Mdi 13W 3000K DALI SL10
ManufacturerSpittler
HAN3108992
GTIN8018367704907
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Beam angle adjustableNo
Replaceable operating deviceYes
Rated ambient temperature according to IEC 62722-2-110 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Glare limitation (UGR)20.3
Width190 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DALI-2Yes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation width190 mm
Installation height/depth80 mm
Installation length190 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature3000K
Color temperature adjustableNo
Color rendering index CRI90-100
VersionWithout
Suitable for number of light sources1
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power12 to 13 W
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorSilver
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth84 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlYes
Conductor cross-section2.5 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes
Luminaire luminous efficacy148lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux adjustableContinuously variable
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.95.5 %
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Length190 mm
Max. number of luminaires Circuit breaker B1636
Max. number of luminaires Circuit breaker C1660
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Emergency power supply integratedNo
Brushed surfaceNo
Surface protectionOther
Without dimming functionNo
Photobiological safety according to EN 62471RG1
Number of poles5
ReflectorHigh gloss
Impact resistanceIK07
IP protection)IP20
Protection classI
Voltage typeAC/DC
System performance12W
AdjustabilityNot adjustable
Cover materialGlass transparent
Housing materialAluminum
