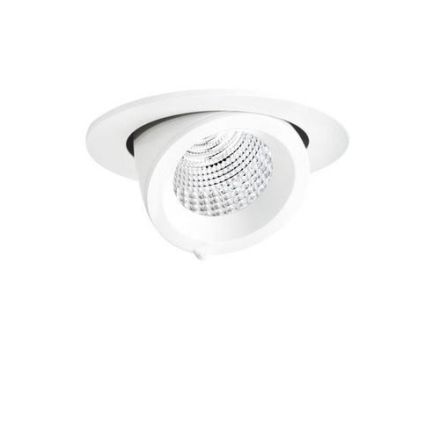

Spittler EB431 RF 8 C/IW 830 WH9010 RE LED recessed ceiling spotlight

Spittler EB431 RF 8 C/IW 830 WH9010 RE LED recessed ceiling spotlight

In stock

SKU: 845108

Price on request

€50.70

€0

Overview

Recessed spotlight EB 431 with high-performance LED COB-LED. Light output 9W. Modern and effective spotlight with innovative LED technology. The spotlight's flexible rotation and pivoting capabilities enable individual and variable lighting planning options. Particularly suitable for atmospheric lighting tasks. Designed for a wide range of application and planning variations in the sales and presentation area. Recessed ring and spotlight head made of die-cast aluminum. Spotlight head. Rotatable by 355°. Pivotable by -15 to 45°. Scratch-resistant surface finish thanks to high-quality powder coating after high-gloss spherical facet reflector made of pure aluminum for maximum light efficiency and neutral color rendering. Incl. protective screen. Direct beam. COB LED including electronic converter. Targeted light creates an atmospheric room atmosphere. Wide beam of light allows large illumination of objects and rooms.

Feature	Value
System power:	9 W
Rated luminous flux:	880 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	85 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	62 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	65 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	7 W
Operating device:	LED operating device current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK02
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high gloss
Suitable for number of light sources:	1
Luminous flux:	1070 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	71900 h
Protection class (NEMA):	1
Rated ambient temperature according to IEC 62722-2-1:	10 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.89
Number of poles:	3
Conductor cross-section:	1.5 mm²
Connectable conductor cross-section:	0.75 to 2.5 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	98 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average service life of 35,000 h at 25 °C ambient temp.:	87 %
Luminous flux maintenance at average service life of 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.:	82.7 %
Luminous flux maintenance at average. Service life 100,000 h at 25 °C ambient temp.:	70 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Installation diameter:	75 mm
Max. number of luminaires circuit breaker B16:	92
Max. Number of lights circuit breaker C16:	92
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	24.8
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Connectable conductor cross-section0.75 to 2.5 mm²

Rated luminous flux880 lm

HABEB431 RF 8 C/IW 830 WH9010 RE

Manufacturer

HAN8431174073310

GTIN4046075046549

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter85 mm

Rated lifetime L70/B50 at 25 °C71900 hours

Rated ambient temperature according to IEC 62722-2-110 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)24.8

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter75 mm

Installation height/depth62 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power7W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth65 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.89

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy98lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1070lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.82.7 %

Light distributorReflector

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1692

Max. number of luminaires Circuit breaker C1692

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorHigh gloss

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)1

Protection classII

Voltage typeAC

System performance9W

AdjustabilityRotatable and pivotable

Housing materialAluminum
