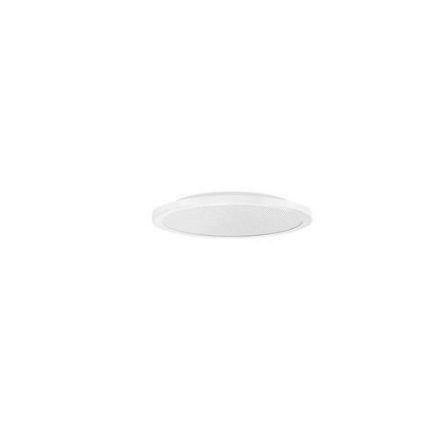

Spittler FL Round 333 26W 830 micropris DALI white LED ceiling light

Spittler FL Round 333 26W 830 micropris DALI white LED ceiling light

In stock

SKU: 845196

Price on request

€314.16

€0

Overview

FL 333 ROUND surface-mounted luminaire with high-performance LED. Luminaire output 26W. Advanced surface luminaire creates an unprecedented symbiosis of general and workplace lighting. Particularly delicate and innovative design. Characterized by clear and round shapes, a harmonious integration into the ceiling and surroundings is created. Particularly elegant and architecturally supportive. Designed for a wide range of application and planning variations. Luminaire frame made of die-cast aluminum. Scratch-resistant surface finish thanks to high-quality powder coating. Prismatic light optics with LED side light feed. Integrated, highly transmitting light guide made of PMMA. Direct beam with corona to brighten the ceiling. Homogeneous luminance distribution across the entire light emission surface (LED side light technology). Ceiling brightening in the room using an indirect component of around 3% (corona). Glare-free microprism cover ensures an attractive room atmosphere. High light quality supports demanding visual tasks.

< td>Dimming with push button:

Property	Value
System power:	26 W
Luminous flux:	3000 lm
Number of LM:	1
Height/depth:	53 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	332 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	40 to 35 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Structured plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	yes
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
yes
Rated service life:	99800 h
Protection class (NEMA):	1
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	24 W
Luminous efficacy:	115 lm/W
Power factor:	0.9
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.5 mm²
Surface protection housing:	powder-coated
Nominal current:	108 to 118 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at average service life of 35,000 h at 25 °C ambient temp.:	79 %
Luminous flux maintenance at average service life of 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.:	70 %
Luminous flux maintenance at average service life 75,000 h at 25 °C ambient temp.:	55 %
Failure rate at average service life of 35,000 h at 25 °C ambient temp. (tq):	0.8 %
Failure rate at average service life of 50,000 h at 25 °C ambient temp. (tq):	1 %
Failure rate at average Service life of 75,000 hours at 25 °C ambient temperature (tq):	1.2 %
Max. number of luminaires with circuit breaker B16:	177
Max. Number of lights circuit breaker C16:	51
Integrated emergency power supply:	no
Flicker value Pst LM:	0.4
Stroboscopic effect value SVM:	0.7
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	22
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Stroboscopic effect value SVM0.7

Flicker value Pst LM0.4

HABFL Round 333 26W 830 micropris DALI white

Manufacturer

HAN8333661266310

GTIN4052075216585

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter332 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchYes

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power24W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth53 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux3000lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B16177

Max. number of luminaires Circuit breaker C1651

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current108 to 118 mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)1

Protection classI

Voltage typeAC

System performance26W

Temperature40 to 35 °C

Cover materialPlastic structured

Housing materialAluminum
