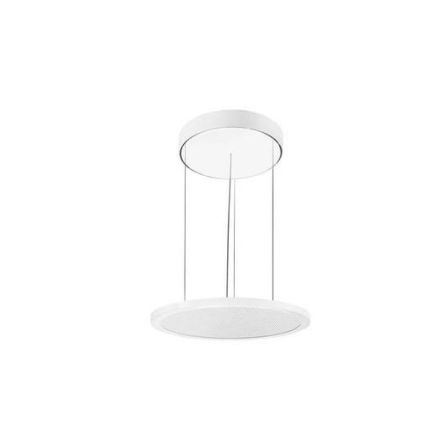

Spittler FL Round 333 26W 830 micropris DALI white LED pendant light

Spittler FL Round 333 26W 830 micropris DALI white LED pendant light

In stock

SKU: 845238

Price on request

€353.37

€0

Overview

Pendant light FL 333 ROUND with high-performance LED. Light output 26W. Advanced surface light creates an unprecedented symbiosis of general and workplace lighting. Particularly delicate and innovative design. Characterized by clear and round shapes, a harmonious integration into the ceiling and surroundings is created. Particularly elegant and architecturally supportive. Designed for a wide range of application and planning variations. Light frame made of die-cast aluminum. Scratch-resistant surface finish thanks to high-quality powder coating after prismatic light optics with LED side light feed. Integrated, highly transmissive light guide made of PMMA. Direct beam. Homogeneous luminance distribution across the entire light emission surface (LED side light technology). Glare-free microprism cover ensures an attractive room atmosphere. High light quality supports demanding visual tasks.

< td>Dimming DMX:

Property	Value
Max. System power:	26 W
Luminous flux:	2540 lm
Color temperature:	3000 K
Diameter:	332 mm
Socket:	other
Suitable for number of light sources:	1
Height/depth:	14 mm
Protection class:	IP20
Protection class:	I
Pendant length:	230 to 1500 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminium
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
With suspension:	yes
Cover material:	plastic, structured
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components can be controlled separately:	no
Light distribution:	symmetrical
Light emission:	direct
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	yes
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming LineSwitch:	yes
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Zigbee dimming:	no
Push-button dimming:	yes
Without dimming function:	no
Light distributor:	Diffuser lens/optics/panel
Protection class (NEMA):	1
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	24 W
Power factor:	0.9
Rated service life L70/B50 at 25 °C:	99800 h
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.5 mm²
Connection type:	Plug-in terminal
Nominal current:	108 to 118 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	70 %
Luminous flux maintenance with an average service life of 75,000 hours at an ambient temperature of 25 °C:	55 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	1 %
Failure rate with an average service life of 75,000 hours at 25 °C ambient temperature. (tq):	1.2 %
Integrated emergency power supply:	no
Luminaire luminous efficacy:	98 lm/W
Glare limitation (UGR):	22
Flicker value Pst LM:	0.7
Constant luminous flux control:	no
Stroboscopic effect value SVM:	0.4
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Stroboscopic effect value SVM0.4

Flicker value Pst LM0.7

HABFL Round 333 26W 830 micropris DALI white

Manufacturer

HAN8333261266310

GTIN4052075216103

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C99800 hours

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchYes

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter332 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for number of light sources1

Suitable for lamp power24W

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth14 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy98lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2540lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance26W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Rated current108 to 118 mA

Emergency power supply integratedNo

Without dimming functionNo

Pendulum length230 to 1500 mm

Number of poles5

ReflectorWithout

Impact resistanceIK06

Protection classIP20

Protection class (NEMA)1

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
