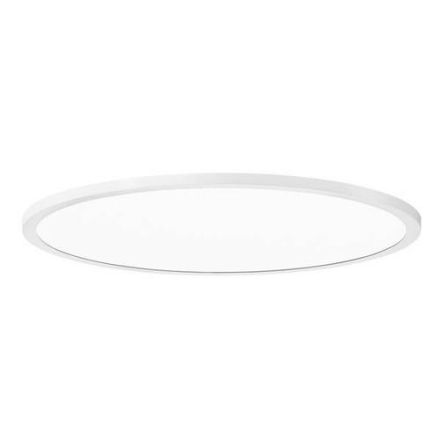

Spittler FL Round 555 50W 840 opal DALI white LED recessed light

Spittler FL Round 555 50W 840 opal DALI white LED recessed light

In stock

SKU: 845209

Price on request

€406.32

€0

Overview

Recessed light FL 555 ROUND with high-performance LED. Light output 50W. Advanced surface light creates an unprecedented symbiosis of general and workplace lighting. Particularly delicate and innovative design. Characterized by clear and round shapes, a harmonious integration into the ceiling and surroundings is created. Particularly elegant and architecturally supportive. Designed for a wide range of application and planning variations. Light frame made of die-cast aluminum. Scratch-resistant surface finish thanks to high-quality powder coating according to Opale light optics with LED side light feed. Integrated highly transmissive light guide made of PMMA. Direct light emission. Homogeneous luminance distribution across the entire light emission surface (LED side light technology). Diffuse light effect creates a uniform lighting level. Uniform light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces.

Property	Value
System power:	50 W
Luminous flux:	6210 lm
Number of LM:	1
Height/depth:	14 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	551 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	40 to 35 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	63 mm
Without dimming function:	no
Installation width:	310 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	310 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	yes
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	yes
Rated service life:	99800 h
Protection class (NEMA):	1
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	45 W
Luminaire luminous efficacy:	124 lm/W
Power factor:	0.9
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.5 mm²
Surface protection housing:	powder-coated
Nominal current:	208 to 227 mA
Replaceable operating device:	yes
Dimming DALI-2:	yes
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at Average service life 35,000 h at 25 °C ambient temp.:	79 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	70 %
Luminous flux maintenance at average service life 75,000 h at 25 °C ambient temp.:	55 %
Failure rate at average service life of 35,000 h at 25 °C ambient temp. (tq):	0.8 %
Failure rate at average service life Service life of 50,000 hours at 25 °C ambient temp. (tq):	1 %
Failure rate for average service life of 75,000 hours at 25 °C ambient temp. (tq):	1.2 %
Max. number of luminaires with circuit breaker B16:	264
Max. Number of lights circuit breaker C16:	16
Integrated emergency power supply:	no
Flicker value Pst LM:	0.4
Stroboscopic effect value SVM:	0.7
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	25
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Stroboscopic effect value SVM0.7

Flicker value Pst LM0.4

HABFL Round 555 50W 840 opal DALI white

Manufacturer

HAN8555591516410

GTIN4052075217155

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter551 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)25

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2Yes

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchYes

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableNo

Installation width310 mm

Installation height/depth63 mm

Installation length310 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power45W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth14 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy124lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux6210lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B16264

Max. number of luminaires Circuit breaker C1616

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current208 to 227 mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)1

Protection classI

Voltage typeAC

System performance50W

Temperature40 to 35 °C

Cover materialPlastic opal

Housing materialAluminum
