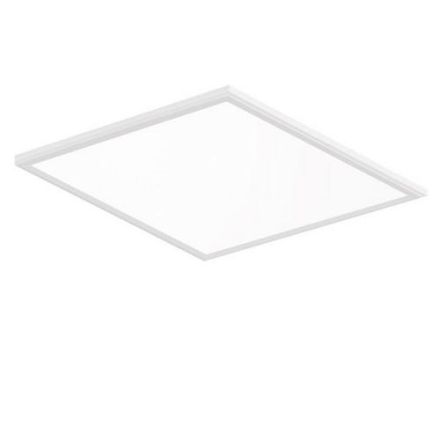

Spittler FL600 SM 41 S/B 830 WH9016 OP LED wall/ceiling light

Spittler FL600 SM 41 S/B 830 WH9016 OP LED wall/ceiling light

In stock

SKU: 845066

Price on request

€297.03

€0

Overview

FL 600 surface-mounted luminaire with high-performance LED. Luminaire output 40W. Particularly delicate and innovative design. Characterized by clear and square shapes, it is harmoniously integrated into the ceiling and surroundings. Particularly elegant and supports the architecture. Designed for a wide range of applications and planning variations. Luminaire frame made of extruded aluminum profile. Scratch-resistant surface finish thanks to high-quality powder coating according to Opale Light optics with LED side light feed. Integrated highly transmitting light guide. Direct beam with corona for ceiling illumination. Homogeneous luminance distribution across the entire light emission surface (LED side light technology). The luminaire appears to be floating in the room thanks to ceiling illumination (corona). Diffuse lighting effect creates a uniform lighting level. Uniform light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces.

Property	Value
System power:	40 W
Luminous flux:	4780 lm
Number of LM:	1
Length:	596 mm
Width:	596 mm
Height/depth:	52 mm
Protection class (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK05
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	10 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life:	99800 h
Protection class (NEMA):	1
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	41 W
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.89
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	1.5 mm²
Surface protection housing:	powder-coated
Nominal current:	167 to 182 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temp.:	79 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	70 %
Luminous flux maintenance at average service life 75,000 h at 25 °C ambient temp.:	55 %
Failure rate at average service life of 35,000 h at 25 °C ambient temp. (tq):	0.8 %
Failure rate at average service life of 50,000 h at 25 °C ambient temp. (tq):	1 %
Failure rate with an average service life of 75,000 hours at 25 °C ambient temperature. (tq):	1.2 %
Max. Number of lights circuit breaker C16:	65
Integrated emergency power supply:	no
Flicker value Pst LM:	0.4
Stroboscopic effect value SVM:	0.7
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	22
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Stroboscopic effect value SVM0.7

Flicker value Pst LM0.4

HABFL600 SM 41 S/B 830 WH9016 OP

Manufacturer

HAN8600691403300

GTIN4046075047249

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Width596 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power41 W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth52 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.89

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux4780lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length596 mm

Max. number of luminaires Circuit breaker C1665

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current167 to 182 mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles3

Impact resistanceIK05

IP protection)IP20

Protection class (NEMA)1

Protection classI

Voltage typeAC

System performance40W

Temperature10 to 35 °C

Cover materialPlastic opal

Housing materialAluminum
