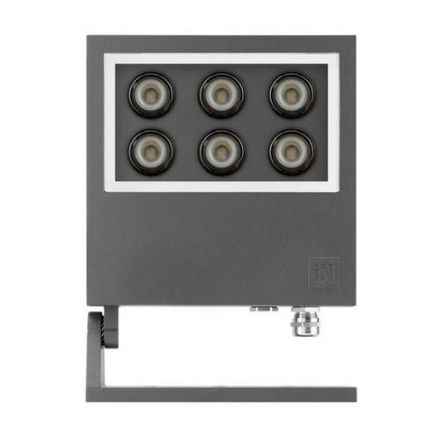

Spittler FOCUS+3 50W C/M 3000K AN3 LED spotlight

In stock

SKU: 845176

Price on request

€370.28

€0

Overview

LED floodlight for indoor and outdoor use, comprising: Body and diffuser in painted die-cast aluminum. Adjustable boom in painted die-cast aluminum. Diffuser in extra-clear tempered flat glass with internal screen printing. Circular optics. Latest generation high-performance LED lights with high luminous flux. Silicone gasket. External screws in stainless steel. Cable entry M20x1.5 for cable D= 7- 12 mm.

Property	Value
System power:	50 W
Rated luminous flux:	3683 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	300 mm
Width:	220 mm
Height/depth:	50 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	50 W
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Impact resistance:	IK09
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of light sources:	1
Cover material:	transparent glass
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 30 °C
Replaceable control gear:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp.:	94.1 %
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.:	90.7 %
Luminous flux maintenance at average service life 100,000 h at 25 °C ambient temp.:	80.1 %
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Max. Number of lights circuit breaker B16:	15
Max. number of lights circuit breaker C16:	25
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Rated luminous flux3683 lm

HABFOCUS+3 50W C/M 3000K AN3

Manufacturer

HAN305235

GTIN8018367651553

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated ambient temperature according to IEC 62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Width220 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI70-79

VersionOther

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power50W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorAnthracite

Height/Depth50 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90.7 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length300 mm

Max. number of luminaires Circuit breaker B1615

Max. number of luminaires Circuit breaker C1625

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

ReflectorWithout

Impact resistanceIK09

IP protection)IP66

Protection classI

System performance50W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
