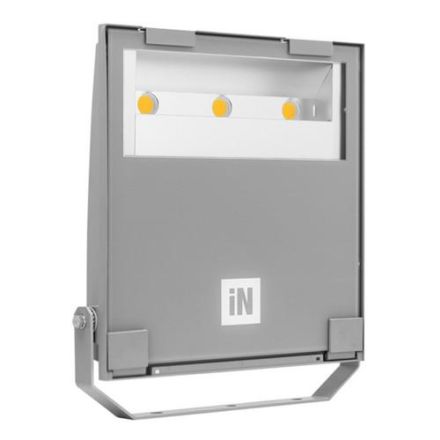

Spittler Guell 2.5 asym 148W 4000K grey LED spotlight

Spittler Guell 2.5 asym 148W 4000K grey LED spotlight

In stock

SKU: 845076

Price on request

€394.12

€0

Overview

LED floodlight for indoor and outdoor use, comprising: Die-cast aluminum housing painted with polymer powder paint in grainy gray after prior chemical surface treatment ISO 9227. Diffuser made of extra-clear, tempered flat safety glass. High-performance reflectors made of 99.99% metallized ultra-pure aluminum, high-gloss, oxidation- and iridescence-free. Anti-aging silicone gasket. M20x1.5 cable gland for cables with Ø 10-14 mm. Stainless steel external screws. Aluminum clip with stainless steel spring, captive. Steel bracket painted with polyester powder paint after cataphoresis coating. ON/OFF, DALI and 1-10V versions available. Contact the factory. Includes additional protection device against mains overvoltages up to 10 kV (SPD). The versions with A50/W optics are equipped with LED modules and reflectors specifically designed for environments where it is necessary to obtain light distributions with a high degree of asymmetry. Openable and serviceable luminaire. Complies with CAM criteria for public lighting. For other colour temperatures and colour rendering index, contact the factory. Design by GIORGIO LODI.

Feature	Value
System power:	154 W
Rated luminous flux:	20027 lm
Housing color:	grey
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for built-in installation:	no
Length:	455 mm
Width:	395 mm
Height/depth:	90 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	asymmetrical
Suitable for lamp power:	154 W
Operating device:	LED operating device current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK07
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Reflector:	high-gloss
Suitable for number of light sources:	1
Luminous flux:	24200 lm
Cover material:	transparent glass
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
DALI dimming:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Total harmonic distortion (THD):	20
Rated service life L70/B50 at 25 °C:	195000 h
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Type of wiring:	Termination
Power factor:	0.9
Number of poles:	3
Conductor cross-section:	1.5 mm²
Connectable conductor cross-section:	1 to 2.5 mm²
Connection type:	Screw terminal
Luminous efficacy:	130 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3
Replaceable control gear:	yes
DALI-2 dimming:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Max. number of luminaires with circuit breaker B16:	11
Max. Number of lights circuit breaker C16:	6
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)20

Connectable conductor cross-section1 to 2.5 mm²

Rated luminous flux20027 lm

HABGuell 2.5 asym 148W 4000K grey

Manufacturer

HAN3115156

GTIN8018367722277

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C195000 hours

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width395 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power154W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth90 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy130lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux24200lm

Luminous flux adjustableNo

Light distributorDiffuser lens/optics/panel

Light distributionAsymmetrical

Length455 mm

Max. number of luminaires Circuit breaker B1611

Max. number of luminaires Circuit breaker C166

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorHigh gloss

Impact resistanceIK07

IP protection)IP66

Protection classI

Voltage typeAC

System performance154W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
