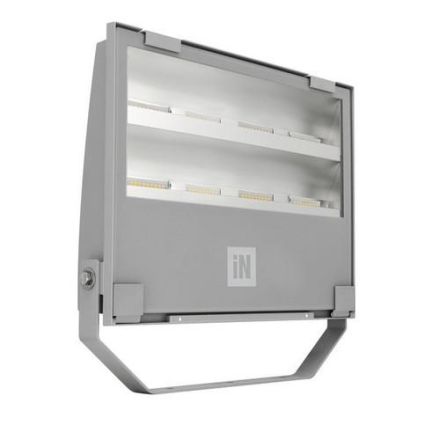

Spittler Guell 3 A50 305W 4000K 35814lm grey LED spotlight

Spittler Guell 3 A50 305W 4000K 35814lm grey LED spotlight

In stock

SKU: 845173

Price on request

€1,124.90

€0

Overview

LED spotlight for indoor and outdoor use, comprising: Die-cast aluminum housing painted with polymer powder paint in grainy gray after a chemical surface treatment. Diffuser made of extra-clear tempered safety flat glass. High-performance reflectors made of 99.99% metallized ultra-pure aluminum, high-gloss, oxidation- and iridescence-free. Anti-aging silicone gasket. M20x1.5 glands for cables D= 10-14 mm. LED modules and reflectors specially designed for environments where light distributions with high asymmetry must be achieved. External screws made of stainless steel. Aluminum clip with stainless steel spring, captive. Steel bracket, painted with polyester powder paint after cataphoresis coating.

Property	Value
System power:	305 W
Rated luminous flux:	35814 lm
Housing color:	grey
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	563 mm
Width:	501 mm
Height/depth:	98 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	asymmetrical
Suitable for lamp power:	305 W
Operating device:	LED operating device, current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK07
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Reflector:	high-gloss
Suitable for number of light sources:	1
Cover material:	transparent glass
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	0 °C
Replaceable control gear:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp.:	90 %
Luminous flux maintenance at average service life 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.:	85.6 %
Luminous flux maintenance at average service life 100,000 h at 25 °C ambient temp.:	72.6 %
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Max. Number of lights circuit breaker B16:	20
Max. number of lights circuit breaker C16:	13
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Rated luminous flux35814 lm

HABGuell 3 A50 305W 4000K 35814lm grey

Manufacturer

HAN306114

GTIN8021944117960

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated ambient temperature according to IEC 62722-2-10°C

Operating deviceLED control gear current controlled

Width501 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power305W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorGray

Height/Depth98 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.85.6 %

Light distributorDiffuser lens/optics/panel

Light distributionAsymmetrical

Length563 mm

Max. number of luminaires Circuit breaker B1620

Max. number of luminaires Circuit breaker C1613

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

ReflectorHigh gloss

Impact resistanceIK07

IP protection)IP66

Protection classI

Voltage typeAC

System performance305W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
