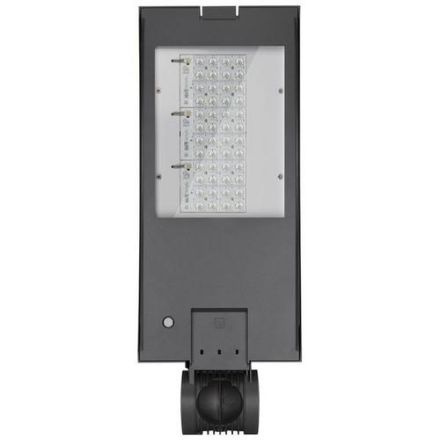

Spittler KYRO+2 105 SR/150 740 AN-96 LED mast light

LED street lights, available in two versions: Body and cover in die-cast aluminium painted with polyester powder coating, after a chemical transformation. Diffuser in extra-clear tempered flat safety glass. Optics in technopolymer lenses with high light transmission. Depending on the model, the following optics are available: SR/T1 for narrow streets and with a W/H ratio (road width / pole height) of up to 0.75 SR/T2 for two-lane roads with a W/H ratio of 1 SR/T3 for wide streets with a W/H ratio of 1.25 SR/T4 for wide streets with a W/H ratio of 1.5. Heat sink in aluminium. Gasket in resistant silicone with high resilience. Terminal block ensures automatic power supply interruption when the light housing is opened. M25x1.5 gland for cables with D= 9-14 mm. High-performance electronic ballast. Complies with UNI 10819 and regional laws on light pollution. Stainless steel external screws. Bracket housing the components in technopolymer reinforced with glass fibre. Pole fixing bracket in painted die-cast aluminium. The KYRO+ 1 versions are suitable for installation on poles with D=42-60/62 mm, the KYRO+ 1-D76 versions on poles with D=76 mm and the KYRO+ 2 versions on poles with D=60/62-76 mm. Component supports can be replaced without tools. Complete with additional protection against mains overvoltages up to 10 kV (DM). SECURE LIGHT DISTRIBUTION system that guarantees uniform light distribution even in the event of a fault in an LED. Versions with automatic power reduction are available. Versions with ON-OFF driver and dimmable DALI are available. The DALI version is supplied complete with 1 meter of cable H07RN-F 2x 1.5qmm and an IP66 connector made of polyamide with silver-plated brass contacts for cables D= 9-14 mm. This allows connection to the power grid, o
