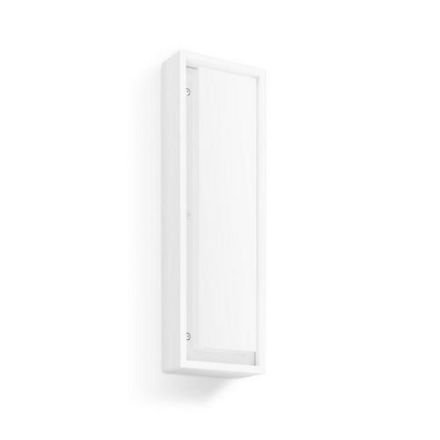

Spittler Multi+ 35 9 S/EW 830 WH87 LED wall light

In stock

SKU: 845154

Price on request

€102.28

€0

Overview

Wall light for indoor and outdoor use, consisting of: Housing made of technopolymer. Diffuser made of matt, shatter-proof technopolymer, glow wire 960 degrees Celsius. Silicone seal. Locking screws made of vandal-proof stainless steel. Light prepared for through-wiring. Protection class II. Cable glands also possible for cable diameters up to max. 20 mm. Pivoting SMD LED board on MCPCB basis (metal circuit board).

Property	Value
System power:	10.5 W
Luminous flux:	724 lm
Number of LM:	1
Length:	84.5 mm
Width:	357.5 mm
Height/depth:	127.5 mm
Protection class (IP):	IP65
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	3000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 25 °C
Socket:	other
Connection type:	other
With operating device:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Suitable for lamp power:	9 W
Luminaire luminous efficacy:	69 lm/W
Power factor:	0.9
Type of wiring:	Termination
Number of poles:	2
Conductor cross-section:	2.5 mm²
Surface protection housing:	untreated
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance with an average service life of 35,000 hours at an ambient temperature of 25 °C:	91.6 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	87.9 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: Service life 75,000 hours at 25 °C ambient temperature:	82 %
Max. number of luminaires circuit breaker B16:	92
Max. Number of lights circuit breaker C16:	92
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	20
Photobiological safety in accordance with EN 62471:	RG1
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)20

HABMulti+ 35 9 S/EW 830 WH87

Manufacturer

HAN306139

GTIN8018367664058

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width357.5 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Height/Depth127.5 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section2.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy69lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux724lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.87.9 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length84.5 mm

Max. number of luminaires Circuit breaker B1692

Max. number of luminaires Circuit breaker C1692

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

Impact resistanceIK10

IP protection)IP65

Protection class (NEMA)Other

Protection classII

Voltage typeAC

System performance10.5W

Temperature-20 to 25 °C

Cover materialPlastic opal

Housing materialPlastic
