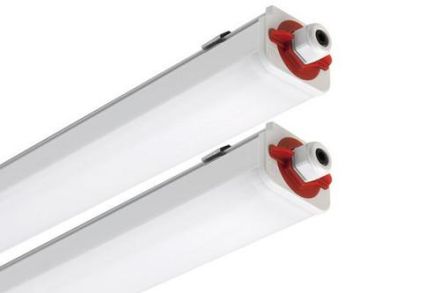

Spittler Norma+150 CL 60 S/EW 840 GR-RAL7035 LED tube light

Spittler Norma+150 CL 60 S/EW 840 GR-RAL7035 LED tube light

In stock

SKU: 845150

Price on request

€119.93

€0

Overview

Waterproof LED luminaire, consisting of: Housing made of co-extruded UV-stabilized polycarbonate with double finish (lamp compartment satin finish, electrical compartment matt finish). Head elements made of technopolymer. Anti-aging silicone gasket. Socket for power connection with tool-free bayonet lock, made of polycarbonate. Stuffing boxes M20x1.5 for cables D= 10-14 mm. Includes through-wiring for light strip arrangement. Light source consists of several LED modules. Heat dissipation system made of aluminum. Springs for quick installation on the ceiling made of stainless steel. Incl. vacuum protection valve.

Property	Value
System power:	60 W
Luminous flux:	7556 lm
Number of LM:	1
Length:	63.5 mm
Width:	1560 mm
Height/depth:	75.5 mm
Protection class (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK09
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Socket:	other
With control gear:	yes
Cover material:	opal plastic
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
Control gear:	LED control gear, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	yes
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	60 W
Surface protection housing:	untreated
Replaceable operating device:	yes
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM5
Luminous flux maintenance with an average service life of 35,000 hours at an ambient temperature of 25 °C:	91.4 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	87.9 %
Luminous flux maintenance with an average service life of 75,000 hours at an ambient temperature of 25 °C:	82.3 %
Max. number of luminaires with circuit breaker B16:	21
Max. Number of lights circuit breaker C16:	26
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	25
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	22.2
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)25

HABNorma+150 CL 60 S/EW 840 GR-RAL7035

Manufacturer

HAN305946

GTIN8021944116437

Covering the luminaire with thermal insulation material possibleNo

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22.2

Width1560 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM5

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power60W

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Glow wire test according to IEC 60695-2-11Without

Height/Depth75.5 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux7556lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.87.9 %

Light distributionSymmetrical

Length63.5 mm

Max. number of luminaires Circuit breaker B1621

Max. number of luminaires Circuit breaker C1626

With operating deviceYes

With motion detectorNo

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Impact resistanceIK09

IP protection)IP65

Protection classI

Voltage typeAC

System performance60W

Cover materialPlastic opal

Housing materialPlastic

Spittler Norma+150 CL 60 S/EW 840 GR-RAL7035 LED tube light
