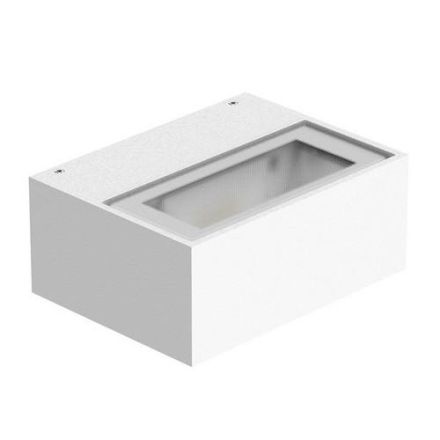

Spittler Orion HB 10 A40/W 830 WH87 LED wall light

Spittler Orion HB 10 A40/W 830 WH87 LED wall light

In stock

SKU: 845131

Price on request

€83.05

€0

Overview

Range of LED wall lights for indoor and outdoor use, comprising: Die-cast aluminium body, powder coated. Diffuser in extra-clear tempered flat glass, with internal screen printing. Aluminium reflector. Silicone gasket. LED modules 220-240V 50/60 Hz protected against overvoltage up to 500 V.

Property	Value
System power:	10 W
Luminous flux:	501 lm
Number of LM:	1
Length:	90 mm
Width:	120 mm
Height/depth:	50 mm
Protection class (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 35 °C
Socket:	other
Connection type:	screw terminal
With operating device:	no
Cover material:	opal glass
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Suitable for Lamp power:	10 W
Luminaire luminous efficacy:	50 lm/W
Power factor:	0.9
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.5 mm²
Surface protection housing:	painted
Replaceable operating device:	no
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance for average usage time of 35,000 hours at 25 °C ambient temp.:	61 %
Luminous flux maintenance for average usage time of 50,000 hours at 25 °C ambient temp.:	48.8 %
Luminous flux maintenance for average usage time of 75,000 hours at 25 °C ambient temp.:	33.6 %
Max. Number of luminaires circuit breaker B16:	66
Max. Number of lights circuit breaker C16:	106
Integrated emergency power supply:	no
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG1
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABOrion HB 10 A40/W 830 WH87

Manufacturer

HAN3105451

GTIN8018367692426

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power10W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth50 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy50lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux501lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.48.8 %

Light distributorDiffuser lens/optics/panel

Light distributionAsymmetrical

Length90 mm

Max. number of luminaires Circuit breaker B1666

Max. number of luminaires Circuit breaker C16106

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPainted

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

Impact resistanceIK06

IP protection)IP65

Protection classI

Voltage typeAC

System performance10W

Temperature-20 to 35 °C

Cover materialGlass opal

Housing materialAluminum
