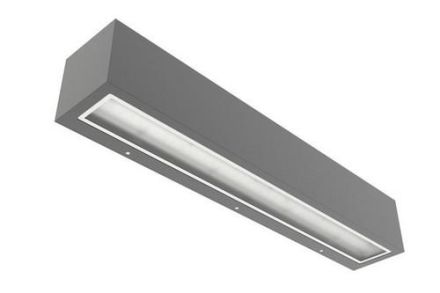

Spittler Quasar 60B 33 A7 EW 830 AN96 LED wall light

Spittler Quasar 60B 33 A7 EW 830 AN96 LED wall light

In stock

SKU: 845244

Price on request

€297.83

€0

Overview

Range of LED wall lights for indoor and outdoor use, comprising: Body in painted die-cast aluminium. Glass diffuser with painted interior for uniform light distribution. Microprismatic glass diffuser on all TECH versions. Reflector in frosted super-pure aluminium (Al 99.98). Silicone gasket. The EM/3P versions can also be used for 3-hour emergency lighting. The EM/3P versions provide for the use of one branch of the same LED board for both general and emergency lighting. Dimmable DALI versions are available on request.

Feature	Value
System power:	38 W
Luminous flux:	3204 lm
Number of LM:	1
Length:	606 mm
Width:	100 mm
Height/depth:	100 mm
Protection class (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 35 °C
Socket:	other
Connection type:	screw terminal
With operating device:	yes
Cover material:	matt/satin glass
Light distributor:	reflector
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Protection class (NEMA):	other
Suitable for lamp power:	33 W
Luminaire luminous efficacy:	84.316 lm/W
Power factor:	0.9
Number of poles:	3
Surface protection housing:	painted
Replaceable control gear:	yes
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance at Average service life 35,000 h at 25 °C ambient temp.:	91.6 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	87.9 %
Luminous flux maintenance at average service life 75,000 h at 25 °C ambient temp.:	82 %
Max. number of luminaires circuit breaker B16:	23
Max. Number of lights circuit breaker C16:	23
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	15
Photobiological safety in accordance with EN 62471:	RG1
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)15

HABQuasar 60B 33 A7 EW 830 AN96

Manufacturer

HAN3100855

GTIN8018367676846

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power33W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

Height/Depth100 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy84,316 lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux3204lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.87.9 %

Light distributorReflector

Light distributionAsymmetrical

Length606 mm

Max. number of luminaires Circuit breaker B1623

Max. number of luminaires Circuit breaker C1623

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPainted

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance38W

Temperature-20 to 35 °C

Cover materialMatt/satin glass

Housing materialAluminum
