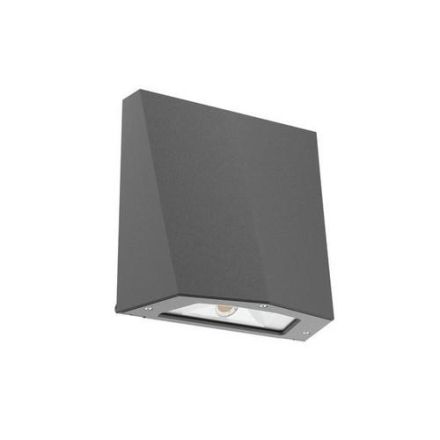

Spittler Shield+1 12/17/24 A/EW 840 AN96 LED wall light

Spittler Shield+1 12/17/24 A/EW 840 AN96 LED wall light

In stock

SKU: 845152

Price on request

€189.66

€0

Overview

LED wall light series for indoor and outdoor use, comprising: Die-cast aluminum housing with polyester powder coating. Polyester powder coating, consisting of 13 different layers, protects against UV radiation. Diffuser made of safety flat glass. Technopolymer reflector with high-performance aluminum coating and surface protection. Silicone gasket. Latest generation powerful LED lights with high luminous flux. Thermal management to protect the LED's operability and lifespan. Multipower version with dip switch for selecting 3 power levels that can be set during installation. Dimmable electronic ballasts (DALI). The EXTREME versions are suitable for extreme conditions, -40 °C. Luminaire prepared for through-wiring. Versions C with automatic twilight sensor are available on request.

Feature	Value
System power:	27 W
Luminous flux:	3072 lm
Number of LM:	1
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 25 °C
Socket:	other
Connection type:	other
With operating device:	yes
Cover material:	transparent glass
Light distributor:	Reflector
Without dimming function:	yes
Light emission:	direct
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	114 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.5 mm²
Surface protection housing:	painted
Replaceable operating device:	yes
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance with an average service life of 35,000 hours at an ambient temperature of 25 °C:	96.2 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	94.8 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: Service life 75,000 h at 25 °C ambient temp.:	92.6 %
Max. number of luminaires with circuit breaker B16:	13
Max. Number of lights circuit breaker C16:	21
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	20
Photobiological safety in accordance with EN 62471:	RG1
Adjustable color temperature:	no
Adjustable luminous flux:	Levels
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)20

HABShield+1 12/17/24 A/EW 840 AN96

Manufacturer

HAN3106354

GTIN8018367693942

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section2.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy114lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3072lm

Luminous flux adjustableStages

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.94.8 %

Light distributorReflector

Light distributionAsymmetrical

Max. number of luminaires Circuit breaker B1613

Max. number of luminaires Circuit breaker C1621

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPainted

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

Impact resistanceIK07

IP protection)IP66

Protection classI

System performance27W

Temperature-20 to 25 °C

Cover materialGlass transparent

Housing materialAluminum
