Spittler Spider+ 10 KIT S/EW 10 840 BK81 LED spotlight

Spittler Spider+ 10 KIT S/EW 10 840 BK81 LED spotlight

In stock

SKU: 845138

Price on request

€73.75

€0

Overview

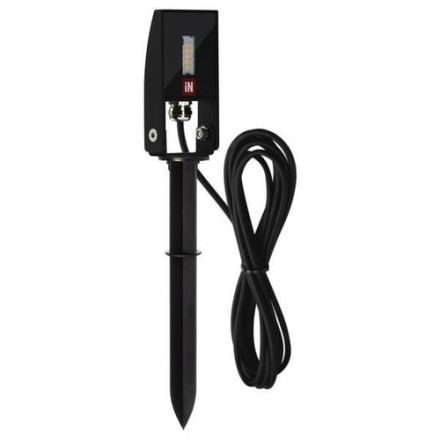

LED spotlight for indoor and outdoor use, comprising: Compact housing made of painted die-cast aluminum. Diffuser made of extra-clear tempered flat glass, with internal screen printing. Cable gland M16x1.5 for cables with Ø 5-10 mm. LED modules 220-240V 50/60 Hz protected against overvoltage up to 500 V. External screws made of stainless steel. Mounting bracket made of painted steel. The SPIDER+ 10 KIT versions are supplied with a technopolymer ground spike and a 3-meter H05RN-F 3G1 mm² cable.

Feature	Value
System power:	10 W
Rated luminous flux:	634 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	no
Suitable for recessed mounting:	no
Length:	130 mm
Width:	66 mm
Height/depth:	26 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	10 W
Operating device:	LED operating device, voltage controlled
Beam angle:	extremely wide beam >80°
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of light sources:	1
Cover material:	transparent glass
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 25 °C
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.5 mm²
Connectable Conductor cross-section:	1.5 mm²
Connection type:	screw terminal
Luminaire luminous efficacy:	63 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	no
DALI-2 dimming:	no
Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temp.:	61 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	48.8 %
Luminous flux maintenance at average Service life 100,000 h at 25 °C ambient temp.:	23.2 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. number of luminaires with circuit breaker B16:	66
Max. Number of lights circuit breaker C16:	106
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Connectable conductor cross-section1.5 mm²

Rated luminous flux634 lm

HABSpider+ 10 KIT S/EW 10 840 BK81

Manufacturer

HAN3108613

GTIN8018367701487

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angle adjustableNo

Replaceable operating deviceNo

Rated ambient temperature according to IEC 62722-2-1-20 to 25 °C

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width66 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power10W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

Height/Depth26 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy63lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.48.8 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length130 mm

Max. number of luminaires Circuit breaker B1666

Max. number of luminaires Circuit breaker C16106

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP66

Protection classI

Voltage typeAC

System performance10W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
