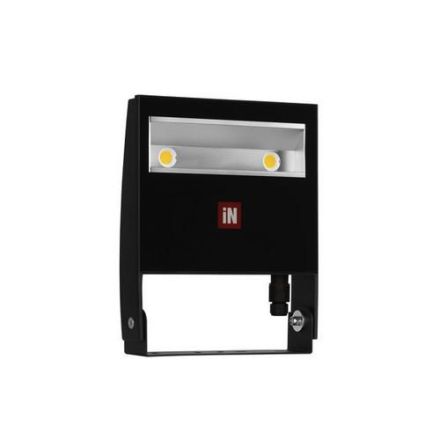

Spittler SPIDER+30 sym 74/101W 11650lm IP67 sw LED spotlight LB21

Spittler SPIDER+30 sym 74/101W 11650lm IP67 sw LED spotlight LB21

In stock

SKU: 845053

Price on request

€173.93

€0

Overview

LED spotlight for indoor and outdoor use, consisting of: Die-cast aluminum housing painted with polymer powder paint in grainy gray after prior chemical surface treatment. Diffuser made of extra-clear tempered flat glass, with internal screen printing. Diffuser is firmly sealed to the housing with high-temperature-resistant silicone adhesive. High-performance reflectors made of 99.99% metallized ultra-pure aluminum, high-gloss, oxidation- and iridescence-free. Symmetrical optics. Age-resistant silicone seal. Power connection via external plug connection IP68, for mains connection without opening the lamp body, made of high-performance polymer, 3 x 1.5/2.5 mm² for conductors Ø 8 - Ø 12 mm. Two preset voltage levels are provided for the operation of the lamp, which the end user can select using a special external switch. External screws made of stainless steel. Steel bracket painted with polyester powder paint after cataphoresis treatment, with simplified fixing system for the lamp. With magnetic spirit level that is positioned on the bracket during assembly. The luminous flux data given refers to the maximum power.

Property	Value
System power:	101 W
Rated luminous flux:	11987 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP67
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for built-in installation:	no
Length:	350 mm
Width:	284 mm
Height/depth:	64 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK06
Reflector:	high gloss
Suitable for number of light sources:	1
Luminous flux:	13934 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming line switch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 30 °C
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.5 mm²
Connectable conductor cross-section:	1 to 2.5 mm²
Connection type:	Screw terminal
Luminous efficacy:	119 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Color consistency (McAdam ellipse):	SDCM3
Replaceable control gear:	no
DALI-2 dimming:	no
Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temp.:	83.2 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	77.6 %
Luminous flux maintenance at average Service life 100,000 h at 25 °C ambient temp.:	91.3 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	levels
Beam angle adjustable:	no
Max. number of lights with circuit breaker B16:	13
Max. Number of lights circuit breaker C16:	21
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Connectable conductor cross-section1 to 2.5 mm²

Rated luminous flux11987 lm

HABSPIDER+30 sym 74/101W 11650lm IP67 black

Manufacturer

HAN3106054

GTIN8018367693652

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Rated ambient temperature according to IEC 62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width284 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth64 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section2.5 mm²

Luminaire luminous efficacy119lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux13934 lm

Luminous flux adjustableStages

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.77.6 %

Light distributorReflector

Light distributionSymmetrical

Length350 mm

Max. number of luminaires Circuit breaker B1613

Max. number of luminaires Circuit breaker C1621

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Without dimming functionYes

Number of poles3

ReflectorHigh gloss

Impact resistanceIK06

IP protection)IP67

Protection classI

Voltage typeAC

System performance101 W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
