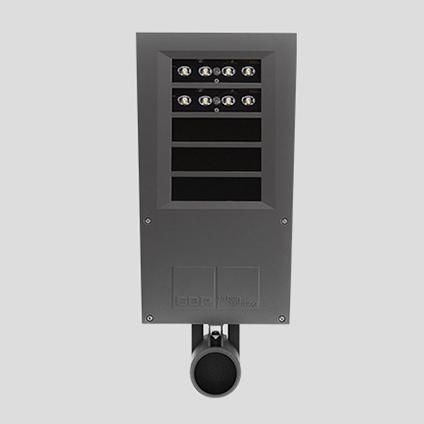

Spittler 06110596 LED street light 4000K 1x70W Power LED street lighting optics

In stock
SKU: 212934
€457.65
Into a basketIn the basketGo

Overview

LED street light series, comprising: Die-cast aluminium body painted with polymer powder paint in grainy grey after a chemical surface treatment , Die-cast aluminium pole fixing part, grainy grey painted, suitable for 60 mm or 76 mm poles , Diffuser with integrated optics in transparent technopolymer, protected against UV rays and heat , Optics made of technopolymer lenses with increased light transmission , Gasket made of resistant silicone with increased resilience , Terminal block ensures automatic power supply interruption when the light body is opened , M20x1.5 glands for 10 - 14 mm cables , High-performance electronic ballast , Light source made up of several LED modules , External screws in stainless steel , 'SECURE LIGHT DISTRIBUTION' system that guarantees uniform light distribution even in the event of a defect in one of the LEDs , Complies with UNI 10819 standard and regional laws on light pollution , Available in Versions with automatic power reduction, versions with dimmable converter are available on request, LED module can be replaced

Property Value
Mounting type: Approach
Light source: LED not replaceable
With light source: Yes
Socket: other
Circuit: other
Housing material: aluminum
Housing colour: anthracite
Coated: Yes
Cover material: Transparent glass
Suitable for number of bulbs: 1
Max. Lamp power: 70 W
Voltage type: AC
Nominal voltage: 220 - 240 V
Nominal current: 700 - 700 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Type of dimming: not dimmable
Protection class (IP): IP66
Adjustable optics: No
Suitable for spigot size: 60 - 76 mm
Impact resistance: IK08
Protection class: II
Remote control: without
With radio control: No
Constant luminous flux control: No
With program-controlled light control: No
With connection cable: No
Effective luminous flux: 8608 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 70-79

Characteristics

Max. lamp power70 W
HAB6110596
ManufacturerSpittler
HAN06110596
GTIN8021944076960
Operating deviceLED control gear current controlled
Color temperature4000 - 4000K
Color rendering index CRI70-79
VersionOther
Remote controlWithout
Suitable for number of lamps1
Suitable for braid size60 - 76 mm
Housing colorAnthracite
Constant luminous flux controlNo
LampsLED not replaceable
Light colorWhite
With connection cableNo
With operating deviceYes
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeApproach
Nominal voltage220 - 240V
Rated current700 - 700mA
Impact resistanceIK08
Protection classII
Voltage typeAC
Cover materialGlass transparent
Housing materialAluminum
