Spittler 303501 LED park and path light 4000K 1X44W Power LED - dimmable 1-10 V round extra-wide scattering optics

In stock
SKU: 212950
€749.98
Into a basketIn the basketGo

Overview

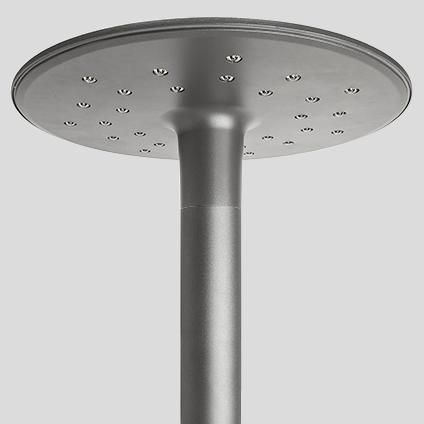

Outdoor bollard light for general lighting, comprising: Die-cast aluminium housing with polyester powder coating, Die-cast aluminium mast fixing kit with polyester powder coating available as an accessory, Anti-aging silicone gasket, M25x1.5 gland for 9-14 mm cables, External power connection via waterproof QUICK plug-socket connection including cable, LED versions are supplied with a 230/240 V 50/60 Hz safety transformer, Versions with dimmable electronic ballast, 1-10 V, Each LED is fitted with an electronic safety device (NUD) that bypasses it in the event of a fault, Stainless steel external screws, 'SECURE LIGHT DISTRIBUTION' system that guarantees uniform light distribution even if an LED is defective, Polyester powder coating consisting of 13 different layers protects against UV radiation, Protection class II

Property Value
Mounting type: Attachment
Light source: LED not replaceable
With light source: Yes
Socket: other
Circuit: other
Housing material: aluminum
Housing color: anthracite
Coated: Yes
Cover material: Transparent plastic
Suitable for number of bulbs: 1
Max. Lamp power: 44 W
Voltage type: AC/DC
Nominal voltage: 220 - 240 V
Nominal current: 500 - 500 mA
Operating device: EVG dimmable
With operating device: Yes
Type of dimming: 1-10 V
Protection class (IP): IP65
Adjustable optics: No
Suitable for spigot size: 90 - 90 mm
Impact resistance: IK10
Protection class: II
Remote control: without
With radio control: No
Constant luminous flux control: No
With program-controlled light control: No
With connection cable: Yes
Cable length: 0.1 m
Effective luminous flux: 5236 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 70-79

Characteristics

Max. lamp power44 W
HAB303501
ManufacturerSpittler
HAN303501
GTIN8018367615043
Operating deviceElectronic ballast di mmable
Color temperature4000 - 4000K
Color rendering index CRI70-79
VersionOther
Remote controlWithout
Suitable for number of lamps1
Suitable for braid size90 - 90 mm
Housing colorAnthracite
Cable length0.1m
Constant luminous flux controlNo
LampsLED not replaceable
Light colorWhite
With connection cableYes
With operating deviceYes
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeEssay
Nominal voltage220 - 240V
Rated current500 - 500mA
Impact resistanceIK10
Protection classII
Voltage typeAC/DC
Cover materialPlastic transparent
Housing materialAluminum
