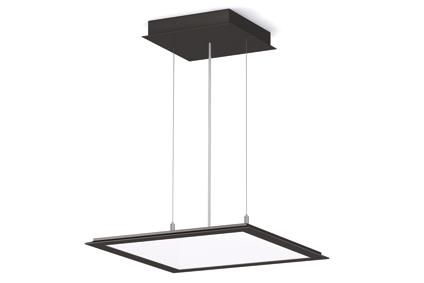

Spittler 8713261256430 LED pendant light 4000K 22W DALI microprism

Spittler 8713261256430 LED pendant light 4000K 22W DALI microprism

In stock

SKU: 127901

Price on request

€530.87

€0

Overview

Pendant light SL 713 with high-performance LED, light output 22W, standard-compliant glare-free workplace light for flexible and individual arrangement, particularly innovative and efficient thanks to extra-flat design (13mm), perfect optics thanks to high-quality profile connections, light housing consisting of aluminum extruded profile Thin-Skate, use for innovative and comfortable office lighting, light housing made of aluminum extruded profile, scratch-resistant surface finish thanks to high-quality powder coating after microprism cover for efficient light scattering, glare minimization and high uniformity, integrated highly transmitting light guide, direct beam, homogeneous luminance distribution over the entire light emission surface (LED sidelight technology), floating appearance of the light in the room thanks to ceiling illumination (Corona), glare-free microprism cover ensures an attractive room atmosphere, BAP-suitable according to DIN EN 12464-1,

Property	Value
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Lamp wattage:	20 W
Lamp wattage for Multiwatt:	not applicable
Operating device:	LED operating device current-controlled
With operating device:	Yes
Type of dimming:	DALI
Circuit:	other
Suitable for emergency lighting:	Yes
Emergency lighting component integrated:	No
Type of voltage:	AC/DC
Nominal voltage:	220 - 240 V
Nominal current:	92 - 100 mA
Direct/indirect components can be controlled separately:	No
Suitable for through-wiring:	Yes
Housing material:	Aluminium
Surface finish:	matt
Housing colour:	grey
Suitable for strip light configuration:	No
Cover material:	Structured plastic
Suitable for computer workstations:	Yes
Grid finish:	without
Reflector:	without
Light distribution:	symmetrical
Light emission:	direct
Length:	390 mm
Width:	390 mm
Height:	13 mm
Suspension included:	Yes
Pendant length:	230 - 1500 mm
Protection class:	I
Protection type (IP):	IP20
Impact resistance:	IK05
Fire protection 'D':	No
Glow wire test according to IEC 60695-2-10:	650 °C - 30 s
Effective luminous flux:	2080 lm
Light color:	white
Color temperature:	4000 - 4000 K
Color rendering index CRI:	80-89
