Spittler 8713261506430 LED pendant light 4000K 46W DALI microprism

In stock
SKU: 127912
€727.88
Into a basketIn the basketGo

Overview

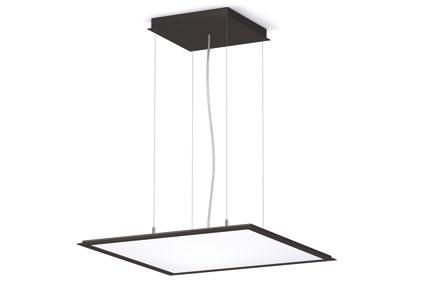

Pendant light SL 713 with high-performance LED, light output 46W, standard-compliant glare-free workplace light for flexible and individual arrangement, particularly innovative and efficient thanks to extra-flat design (13mm), perfect optics thanks to high-quality profile connections, light housing consisting of aluminum extruded profile Thin-Skate, use for innovative and comfortable office lighting, light housing made of aluminum extruded profile, scratch-resistant surface finish thanks to high-quality powder coating after microprism cover for efficient light scattering, glare minimization and high uniformity, integrated highly transmitting light guide, direct beam, homogeneous luminance distribution over the entire light emission surface (LED sidelight technology), floating appearance of the light in the room thanks to ceiling illumination (corona), glare-free microprism cover ensures an attractive room atmosphere, BAP-suitable according to DIN EN 12464-1,

Property Value
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 41 W
Lamp wattage for Multiwatt: not applicable
Operating device: LED operating device current-controlled
With operating device: Yes
Type of dimming: DALI
Circuit: other
Suitable for emergency lighting: Yes
Emergency lighting component integrated: No
Type of voltage: AC/DC
Nominal voltage: 220 - 240 V
Nominal current: 192 - 209 mA
Direct/indirect components can be controlled separately: No
Suitable for through-wiring: Yes
Housing material: Aluminium
Surface finish: matt
Housing colour: grey
Suitable for strip light configuration: No
Cover material: Structured plastic
Suitable for computer workstations: Yes
Grid finish: without
Reflector: without
Light distribution: symmetrical
Light emission: direct
Length: 615 mm
Width: 615 mm
Height: 13 mm
Suspension included: Yes
Pendant length: 230 - 1500 mm
Protection class: I
Protection type (IP): IP20
Impact resistance: IK05
Fire protection 'D': No
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
Effective luminous flux: 4660 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 80-89

Characteristics

ManufacturerSpittler
HAN8713261506430
GTIN4052075131871
Suspension includedYes
Surface finishFrosted
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width615 mm
Direct/indirect components can be controlled separatelyNo
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Housing colorGray
Height13 mm
Lamp power41 W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length615 mm
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current192 - 209mA
Pendulum length230 - 1500 mm
ReflectorWithout
Impact resistanceIK05
Protection classI
Voltage typeAC/DC
Cover materialPlastic structured
Housing materialAluminum
