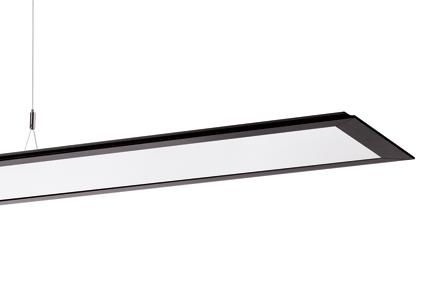

Spittler 8713461653430 LED pendant light 4000K 63W converter microprism

In stock
SKU: 210010
€563.48
Into a basketIn the basketGo

Overview

Pendant light SL 713 with high-performance LED, light output 63W, standard-compliant glare-free workplace light for flexible and individual arrangement, particularly innovative and efficient thanks to extra-flat design (13mm), perfect optics thanks to high-quality profile connections, light housing consisting of aluminum extruded profile Thin-Skate, use for innovative and comfortable office lighting, light housing made of aluminum extruded profile, scratch-resistant surface finish thanks to high-quality powder coating after microprism cover for efficient light scattering, glare minimization and high uniformity, integrated highly transmitting light guide, direct-indirect beam, homogeneous luminance distribution over the entire light exit surface (LED Sidelight technology), glare-free microprism cover ensures an attractive room atmosphere, high light quality supports demanding visual tasks, indirect component creates visual opening of the room through generous ceiling illumination with continuous luminance gradient, BAP-suitable according to DIN EN 12464-1,

Property Value
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 57 W
Lamp wattage at Multiwatt: not applicable
Operating device: LED operating device current-controlled
With Operating device: Yes
Type of dimming: not dimmable
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Type of voltage: AC
Nominal voltage: 220 - 240 V
Nominal current: 263 - 286 mA
Direct/indirect components can be controlled separately: No
Suitable for through-wiring: Yes
Housing material: Aluminum
Surface finish: matt
Housing color: gray
Suitable for light strip configuration: No
Cover material: Structured plastic
Suitable for computer workstations: Yes
Design of the grid: without
Reflector: without
Light distribution: symmetrical
Light emission: direct/indirect
Length: 1547 mm
Width: 250 mm
Height: 13 mm
Suspension included: Yes
Pendant length: 230 - 1500 mm
Protection class: I
Protection type (IP): IP20
Impact resistance: IK05
Fire protection 'D': No
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
Effective luminous flux: 8680 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 80-89

Characteristics

HAB8,71346E+12
ManufacturerSpittler
HAN8713461653430
GTIN4052075154382
Suspension includedYes
Surface finishFrosted
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width250 mm
Direct/indirect components can be controlled separatelyNo
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorGray
Height13 mm
Lamp power57W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributionSymmetrical
Length1547 mm
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current263 - 286mA
Pendulum length230 - 1500 mm
ReflectorWithout
Impact resistanceIK05
Protection classI
Voltage typeAC
Cover materialPlastic structured
Housing materialAluminum
