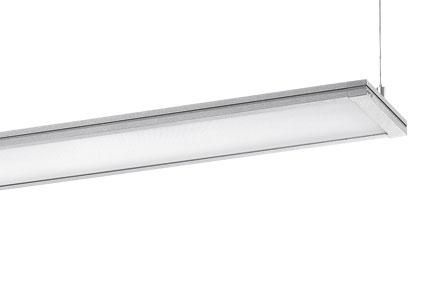

Spittler 8720461866430 LED pendant light 4000K 73W DALI microprism

In stock
SKU: 210090
€680.98
Into a basketIn the basketGo

Overview

Pendant light SL720 with high-performance LED, light output 73W, particularly innovative and efficient thanks to extra-flat design (20mm), use for innovative and comfortable office lighting, light housing made of extruded aluminum profile, scratch-resistant surface finish thanks to high-quality powder coating after microprism cover for efficient light scattering, glare minimization and high uniformity, integrated highly transmitting light guide, direct-indirect beam, homogeneous luminance distribution over the entire light emission surface (LED sidelight technology), glare-free microprism cover ensures an attractive room atmosphere, high light quality supports demanding visual tasks, indirect component creates visual opening of the room through generous ceiling illumination with continuous luminance gradient, BAP-suitable according to DIN EN 12464-1,

Property Value
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 66 W
Lamp wattage for Multiwatt: not applicable
Operating device: LED operating device current-controlled
With operating device: Yes
Type of dimming: DALI
Circuit: other
Suitable for emergency lighting: Yes
Emergency lighting component integrated: No
Voltage type: AC/DC
Rated voltage: 220 - 240 V
Rated current: 304 - 332 mA
Direct/indirect components separately adjustable: No
Suitable for Through wiring: Yes
Housing material: Aluminium
Surface finish: matt
Housing colour: grey
Suitable for strip light configuration: No
Cover material: Structured plastic
Suitable for computer workstations: Yes
Grid finish: without
Reflector: without
Light distribution: symmetrical
Light emission: direct/indirect
Length: 1525 mm
Width: 230 mm
Height: 20 mm
Suspension included: Yes
Pendant length: 230 - 1500 mm
Protection class: I
Protection class (IP): IP20
Impact resistance: IK05
Fire protection 'D': No
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
Effective luminous flux: 8990 lm
Light color: white
Color temperature: 4000 - 4000 K
Color rendering index CRI: 80-89

Characteristics

HAB8,72046E+12
ManufacturerSpittler
HAN8720461866430
GTIN4052075159363
Suspension includedYes
Surface finishFrosted
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width230 mm
Direct/indirect components can be controlled separatelyNo
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Housing colorGray
Height20 mm
Lamp power66W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributionSymmetrical
Length1525 mm
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current304 - 332mA
Pendulum length230 - 1500 mm
ReflectorWithout
Impact resistanceIK05
Protection classI
Voltage typeAC/DC
Cover materialPlastic structured
Housing materialAluminum
