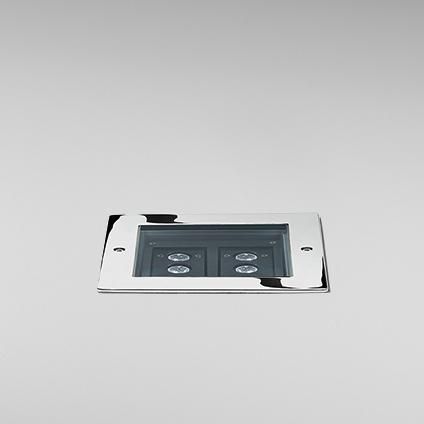

Spittler 301469 LED recessed floor light 3000K 1x6.6W Power LED elliptical optics

In stock
SKU: 213893
€414.64
Into a basketIn the basketGo

Overview

Indoor and outdoor recessed floor light, comprising: body in anodised and black painted die-cast aluminium, diffuser in 12 mm thick extra-clear flat safety glass, lamp compartment separated from electronics compartment for better temperature control, silicone gasket, precision cast stainless steel ring, watertight cable connection system, WATER STOP, external screws in stainless steel, technopolymer recessed pot designed to ensure water drainage through the WATER DRAIN system. The recessed pot is also equipped with a removable lid with two leveling bubbles, which facilitates installation. The recessed pot for the luminaire must be ordered separately. The extruded profiles on which the LEDs are installed can be adjusted independently of each other.

Feature Value
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 6.6 W
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: not dimmable
Circuit: other
Type of voltage: AC
Nominal voltage: 220 - 240 V
Suitable for through-wiring: No
Electrical connection with plug-in system: No
Housing color: without
Cover material: transparent glass
Adjustable: Yes
Light distribution: symmetrical
Length: 200 mm
Width: 200 mm
Height: 130 mm
Installation length: 395 mm
Installation width: 395 mm
Installation depth: 130 mm
Max. load: 2243 kg
Roll-over: Yes
Max. Surface temperature: 35 °C
Protection class: I
Protection class (IP): IP67
Effective luminous flux: 278 lm
Light color: white
Color temperature: 3000 - 3000 K

Characteristics

HAB301469
ManufacturerSpittler
HAN301469
GTIN8018367985023
Operating deviceLED control gear current controlled
Width200 mm
Installation width395 mm
Installation length395 mm
Installation depth130 mm
Electrical connection with plug-in systemNo
Color temperature3000 - 3000K
VersionOther
Suitable for number of lamps1
Housing colorWithout
Height130 mm
AdjustableYes
Lamp power6.6W
LampsLED not replaceable
Light colorWhite
Light distributionSymmetrical
Length200 mm
Max. load2243 kg
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Protection classI
Voltage typeAC
Cover materialGlass transparent
RolloverYes
