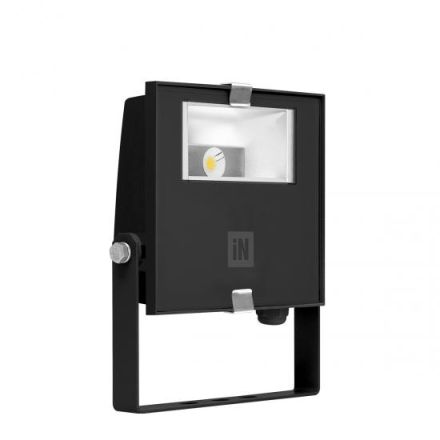

Spittler 306521 LED spotlight Guell Zero asym 28W 4000K 2570lm black

Spittler 306521 LED spotlight Guell Zero asym 28W 4000K 2570lm black

In stock

SKU: 442282

Price on request

€87.02

€0

Overview

LED spotlight for indoor and outdoor use, consisting of: Die-cast aluminum housing painted grainy gray with polymer powder paint after prior chemical surface treatment, diffuser made of tempered safety flat glass, diffuser is firmly sealed to the housing with high temperature resistant silicone adhesive, asymmetrical reflector made of plated aluminum 99.99%, shiny, oxidized and non-iridescent, external screws made of stainless steel, glass locking clamps made of stainless steel, steel bracket painted with polyester powder paint after cataphoresis coating, with 1 meter cable H05RN-F 3G1 mm

Property	Value
System power:	28 W
Rated luminous flux:	2575 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	231 mm
Width:	207 mm
Height/depth:	58 mm
With motion detector:	no
Suitable for wall mounting:	yes
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Suitable for lamp power:	28 W
Beam angle:	wide beam 41-80°
Impact resistance:	IK06
Reflector:	high gloss
Suitable for number of light sources:	1
Cover material:	glass transparent
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 25 °C
Replaceable control gear:	no
DALI-2 dimming:	no
Luminous flux maintenance at average. Service life 35,000 h at 25 °C ambient temp.:	95.7 %
Luminous flux maintenance at average service life 50,000 h at 25 °C ambient temp.:	94 %
Luminous flux maintenance at average Service life 100,000 h at 25 °C ambient temp.:	88.3 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. number of luminaires circuit breaker B16:	20
Max. Number of lights circuit breaker C16:	57
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Rated luminous flux2575 lm

Manufacturer

HAN306521

GTIN8021944122728

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Rated ambient temperature according to IEC 62722-2-1-20 to 25 °C

Width207 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power28W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

Height/Depth58 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.94 %

Light distributorDiffuser lens/optics/panel

Light distributionAsymmetrical

Length231 mm

Max. number of luminaires Circuit breaker B1620

Max. number of luminaires Circuit breaker C1657

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

ReflectorHigh gloss

Impact resistanceIK06

IP protection)IP66

Protection classI

Voltage typeAC

System performance28W

AdjustabilityRotatable

Cover materialGlass transparent

Housing materialAluminum
