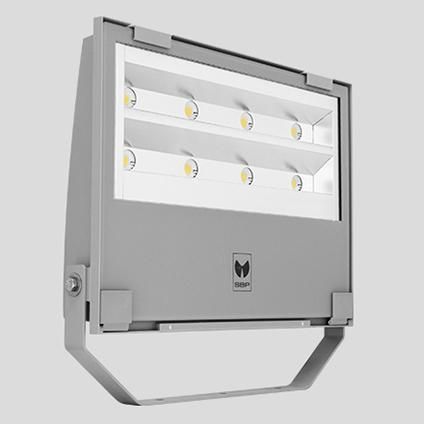

Spittler 06171094 spotlight 4000K n. 8 LED - 317 W Power LED - dimmable 1-10 V asymmetrical optics

Spittler 06171094 spotlight 4000K n. 8 LED - 317 W Power LED - dimmable 1-10 V asymmetrical optics

In stock

SKU: 209553

Price on request

€1,389.32

€0

Overview

LED spotlight for indoor and outdoor use, comprising: Die-cast aluminium housing painted with polymer powder paint in grainy grey after a chemical surface treatment, diffuser in extra-clear tempered flat safety glass, asymmetric reflector in 99.99% plated aluminium, polished, oxidised and non-iridescent, age-resistant silicone gasket, M20x1.5 glands for 10 - 14 mm cables, external screws in stainless steel, aluminium clip with stainless steel spring, captive, steel bracket painted with polyester powder paint after cataphoresis coating, versions with dimmer function available on request, LED models with 3000 K and 5000 K available on request

Feature	Value
Suitable for wall mounting:	Yes
Suitable for pendulum suspension:	No
Suitable for ceiling mounting:	No
Suitable for truss mounting:	No
Suitable for podium/floor mounting:	No
Suitable for power rail mounting:	No
Suitable for clamp mounting:	No
Adjustability:	pivotable
With motion detector:	No
With light sensor:	No
Light source:	LED not replaceable
With light source:	Yes
Suitable for number of light sources:	1
Socket:	other
Suitable for lamp power:	317 - 317 W
Operating device:	EVG dimmable
With operating device:	Yes
Type of dimming:	1-10 V
Nominal voltage:	220 - 240 V
System power:	317 W
Color temperature:	4000 - 4000 K
Housing material:	aluminum
Surface finish:	matt
Housing color:	gray
Reflector:	high gloss
Light distribution:	asymmetrical
Beam angle:	wide beam 40-80°
Length:	562 mm
Width:	501 mm
Height/depth:	98 mm
Protection class:	I
Protection type (IP):	IP66
Impact resistance:	IK02
Fire protection 'D':	Yes
Suitable for through wiring:	No
Voltage type:	AC
Effective luminous flux:	33867 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB6171094

Manufacturer

HAN06171094

GTIN8021944084798

Surface finishFrosted

Beam angleWide beam 40-80°

Operating deviceElectronic ballast di mmable

Width501 mm

Color temperature4000 - 4000K

Color rendering index CRI80-89

VersionOther

Suitable for ceiling mountingNo

Suitable for clamp mountingNo

Suitable for lamp power317 - 317W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorGray

Height/Depth98 mm

LampsLED not replaceable

Light colorWhite

Light distributionAsymmetrical

Length562 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 - 240V

ReflectorHigh gloss

Impact resistanceIK02

Protection classI

Voltage typeAC

System performance317 W

AdjustabilitySwiveling

Housing materialAluminum
