Spittler 8432174133310 LED recessed spotlight 3000K 14W converter flood

In stock
SKU: 127616
€69.78
Into a basketIn the basketGo

Overview

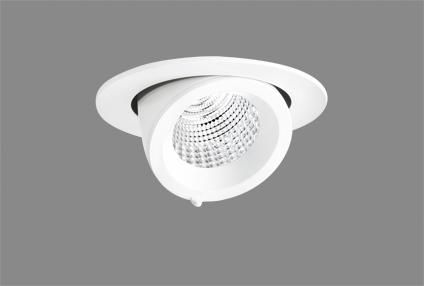

Recessed spotlight EB 432 with high-performance LED COB-LED, luminaire output 14W, modern and effective spotlight with innovative LED technology, thanks to flexible rotation and pivoting, the spotlight enables individual and variable lighting planning options, particularly suitable for atmospheric lighting tasks, designed for a wide range of application and planning variations in the sales and presentation area, recessed ring and spotlight head made of die-cast aluminum, spotlight head, rotatable by 355°, pivotable by -15 to 45°, scratch-resistant surface finish thanks to high-quality powder coating after high-gloss spherical facet reflector made of pure aluminum for maximum luminaire efficiency and neutral color rendering, including protective screen, wide beam (flood) radiation characteristic, COB LED including electronic converter, targeted light creates an atmospheric room atmosphere, wide light cone allows large illumination of objects and rooms,

Property Value
Suitable for wall mounting: No
Suitable for pendulum suspension: No
Suitable for ceiling mounting: Yes
Suitable for truss mounting: No
Suitable for podium/floor mounting: No
Suitable for power rail mounting: No
Suitable for clamp mounting: No
Adjustability: rotatable and pivotable
With motion detector: No
With light sensor: No
Light source: LED not replaceable
With light source: Yes
Suitable for number of light sources: 1
Socket: other
Suitable for lamp power: 12 - 12 W
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: not dimmable
Nominal voltage: 220 - 240 V
Nominal current: 58 - 64 mA
System power: 14 W
Color temperature: 3000 - 3000 K
Housing material: Aluminum
Surface finish: other
Housing color: white
Reflector: high gloss
Light distribution: symmetrical
Beam angle: wide beam 40-80°
Outer diameter: 112 mm
Protection class: II
Protection class (IP): IP20
Impact resistance: IK02
Fire protection 'D': No
Suitable for through wiring: Yes
Voltage type: AC
Effective luminous flux: 1300 lm
Light color: white
Color rendering index CRI: 80-89

Characteristics

ManufacturerSpittler
HAN8432174133310
GTIN4046075046624
Surface finishOther
Beam angleWide beam 40-80°
Outer diameter112 mm
Operating deviceLED control gear current controlled
Color temperature3000 - 3000K
Color rendering index CRI80-89
VersionOther
Suitable for ceiling mountingYes
Suitable for clamp mountingNo
Suitable for lamp power12 - 12W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorWhite
LampsLED not replaceable
Light colorWhite
Light distributionSymmetrical
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 - 240V
Rated current58 - 64mA
ReflectorHigh gloss
Impact resistanceIK02
Protection classII
Voltage typeAC
System performance14W
AdjustabilityRotatable and pivotable
Housing materialAluminum
