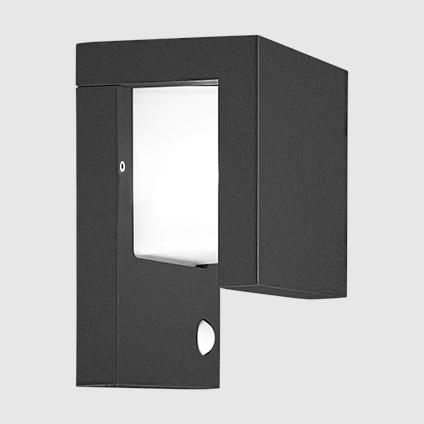

Spittler 303595 LED wall light 3000K 1x8W Power LED symmetrical diffuser optics

In stock
SKU: 208723
€338.10
Into a basketIn the basketGo

Overview

Wall and bollard lights for indoor and outdoor use, comprising: base element and covers made of painted die-cast aluminum, diffuser made of pressed, frosted glass, gasket made of polymer foam, adjustable trigger threshold from 5 lux to daylight level, adjustment of the switch-off time between 6 seconds and 20 minutes, bearing angle vertically equal to 360°, horizontally equal to 100°, the PIR versions are equipped with a motion sensor built into the decorative cover. Suitable for resistive and inductive loads

Property Value
Suitable for wall mounting: Yes
Suitable for pendant suspension: No
Suitable for ceiling mounting: No
Suitable for recessed mounting: No
Suitable for surface mounting: No
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of bulbs: 1
Lamp wattage: 8 W
Lamp wattage for multiwatt: not applicable
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: not dimmable
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Nominal voltage: 220 - 240 V
Color temperature: 3000 - 3000 K
Housing material: Aluminum
Surface finish: matt
Housing color: anthracite
Suitable for Light strip configuration: No
Cover material: Opal glass
Suitable for computer workstations: No
Grid design: without
Reflector: without
Light distribution: symmetrical
Beam angle: free-beaming
Light emission: direct
Length: 151 mm
Width: 210 mm
Height/Depth: 120 mm
With motion detector: Yes
With light sensor: No
Protection class: I
Protection type (IP): IP55
Impact resistance: IK06
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with roof': No
Glow wire test according to IEC 60695-2-10: without
With air slots: No
Voltage type: AC
Effective luminous flux: 180 lm
Light color: white

Characteristics

HAB303595
ManufacturerSpittler
HAN303595
GTIN8018367616521
Surface finishFrosted
Execution of the gridWithout
Beam angleFree-radiating
Operating deviceLED control gear current controlled
Width210 mm
Color temperature3000 - 3000K
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorAnthracite
Height/Depth120 mm
Lamp power8W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length151 mm
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 - 240V
ReflectorWithout
Impact resistanceIK06
Protection classI
Voltage typeAC
Cover materialGlass opal
Housing materialAluminum
Spittler 303595 LED wall light 3000K 1x8W Power LED symmetrical diffuser optics
