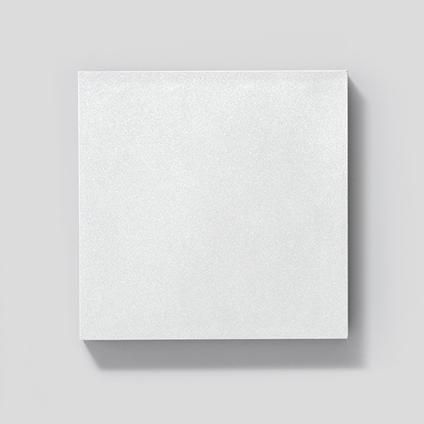

Spittler 303794 LED wall light 3000K 1x24W Power LED asymmetric

Spittler 303794 LED wall light 3000K 1x24W Power LED asymmetric

In stock

SKU: 208769

Price on request

€282.90

€0

Overview

Wall light for indoor and outdoor use, comprising: Body made of painted die-cast aluminum, diffuser with microprism - made of tempered flat glass, screen-printed inside for the MIMIK FLAT version, silicone gasket, LED versions are supplied with a 230/240 V 50/60 Hz safety transformer, The MIMIK versions have optics with lenses made of high-performance polymer with high light rendering and different beam angles to meet the different lighting requirements, Polyester powder coating, consisting of 13 different layers, protects against UV radiation, The B versions use two light sources for light emission upwards and downwards

Feature	Value
Suitable for wall mounting:	Yes
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	No
Suitable for recessed mounting:	No
Suitable for surface mounting:	No
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Lamp wattage:	24 W
Lamp wattage at Multiwatt:	not applicable
Operating device:	LED operating device, current-controlled
With operating device:	Yes
Type of dimming:	not dimmable
Circuit:	other
Suitable for emergency lighting:	No
Emergency lighting component integrated:	No
Nominal voltage:	220 - 240 V
Color temperature:	3000 - 3000 K
Housing material:	aluminum
Surface finish:	matt
Housing color:	white
Suitable for light strip configuration:	No
Cover material:	opal glass
Suitable for computer workstations:	No
Design of the grid:	without
Reflector:	without
Light distribution:	asymmetrical
Beam angle:	wide beam 40-80°
Light emission:	direct/indirect
Length:	200 mm
Width:	200 mm
Height/depth:	42 mm
With motion detector:	No
With light sensor:	No
Protection class:	I
Protection type (IP):	IP65
Impact resistance:	IK06
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	-20 - 40 °C
Glow wire test according to IEC 60695-2-10:	without
With air slots:	No
Voltage type:	AC
Effective luminous flux:	1737 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB303794

Manufacturer

HAN303794

GTIN8018367619973

Surface finishFrosted

Execution of the gridWithout

Beam angleWide beam 40-80°

Operating deviceLED control gear current controlled

Width200 mm

Color temperature3000 - 3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth42 mm

Lamp power24W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributionAsymmetrical

Length200 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 - 240V

ReflectorWithout

Impact resistanceIK06

Protection classI

Voltage typeAC

Ambient temperature-20 - 40 °C

Cover materialGlass opal

Housing materialAluminum
