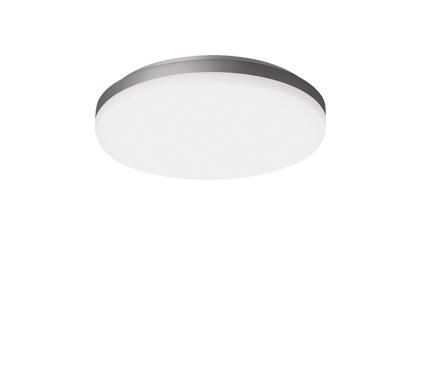

Spittler 8220391153430 LED wall light 4000K 17W converter diffuse light optics

Spittler 8220391153430 LED wall light 4000K 17W converter diffuse light optics

In stock

SKU: 208961

Price on request

€121.90

€0

Overview

Wall-mounted light WL 220 with high-performance LED, light output 15W, LED wall and ceiling light for representative lighting concepts, geometric design language in a timeless style (round), light-directing plastic optics ensure an attractive and even luminance distribution, designed for a wide range of application and planning variations, especially for traffic zones such as corridors and stairwells, light housing made of PMMA, fastening via adjustable mounting clamp, light cover with edge structure 14 mm made of PMMA translucent white, satin, direct beam, diffuse lighting effect creates a uniform lighting level, even light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces,

Property	Value
Suitable for wall mounting:	Yes
Suitable for Pendant suspension:	No
Suitable for ceiling mounting:	Yes
Suitable for recessed mounting:	No
Suitable for surface mounting:	Yes
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Lamp wattage:	15 W
Lamp power at Multiwatt:	not applicable
Operating device:	LED operating device, current-controlled
With operating device:	Yes
Type of dimming:	not dimmable
Circuit:	other
Suitable for emergency lighting:	No
Emergency lighting component integrated:	No
Nominal voltage:	220 - 240 V
Rated current:	71 - 77 mA
Color temperature:	4000 - 4000 K
Housing material:	Plastic
Surface finish:	matt
Housing color:	Aluminium
Suitable for strip light configuration:	No
Cover material:	Plastic opal
Suitable for computer workstations:	No
Design of the grid:	without
Light distribution:	symmetrical
Beam angle:	extremely wide beam >80°
Light emission:	direct
Height/depth:	50 mm
Outer diameter:	220 mm
With motion detector:	No
With Light sensor:	No
Protection class:	II
Protection type (IP):	IP20
Impact resistance:	IK05
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	10 - 35 °C
Glow wire test according to IEC 60695-2-10:	650 °C - 30 s
System power:	17 W
With air slots:	No
Voltage type:	AC
Effective luminous flux:	1390 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB8,22039E+12

Manufacturer

HAN8220391153430

GTIN4052075158502

Surface finishFrosted

Execution of the gridWithout

Outer diameter220 mm

Operating deviceLED control gear current controlled

Color temperature4000 - 4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAluminum

Height/Depth50 mm

Lamp power15W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 - 240V

Rated current71 - 77mA

Impact resistanceIK05

Protection classII

Voltage typeAC

System performance17 W

Ambient temperature10 - 35 °C

Cover materialPlastic opal

Housing materialPlastic
