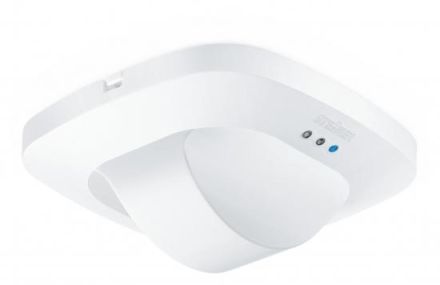

Steinel 003005 Presence detector DUAL HF DALI

Steinel 003005 Presence detector DUAL HF DALI

In stock

SKU: 299396

Price on request

€164.45

€0

Overview

Attentive times 2! High frequency aisle sensor Presence Control PRO Dual HF DALI for indoors, ideal for aisles and long corridors, installation height up to 3.5 m, with digital DALI interface for controlling 2 light channels, DUAL-HF technology with double directional characteristics for up to 20 m radial detection, temperature-independent detection, HF sensor technology also penetrates glass, wood and lightweight walls, particularly fast switching of the light.

Property	Value
Width:	120 mm
Height:	120 mm
Voltage type:	AC
Protection class (IP):	IP20
Min. duty cycle:	30 s
Max. duty cycle:	30 min
Max. inrush current:	800 A
Max. range to one side:	10 m
Max. Frontal range:	10 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9010
Material:	Plastic
Mounting height:	2.8 m
Mounting type:	Flush-mounted
Response brightness:	10 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-25 to 55 °C
Response sensitivity adjustable:	yes
Sensor type:	high frequency
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	20 m
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Min. inrush current:	0.1 A
Installation length:	29 mm
Min. Depth of the device box:	66 mm

Characteristics

Bridging switchYes

With signal unitYes

Response brightness10 to 1000 lx

Forced shutdownYes

Max. inrush current800 A

Forced switching onYes

Manufacturer

HAN003005

GTIN4007841003005

Dimming function with dimming insertYes

Alarm functionNo

Connection typeOther

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Width120 mm

Installation length29 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height120 mm

Constant light controlYes

Max. duty cycle30 min

Max. range frontal10m

Max. range to one side10m

Min. duty cycle30s

Min. depth of the device box66 mm

With DALI interfaceYes

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Surface protectionOther

RAL number (similar)9010

IP protection)IP20

Sensor typeHigh frequency

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 55 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
