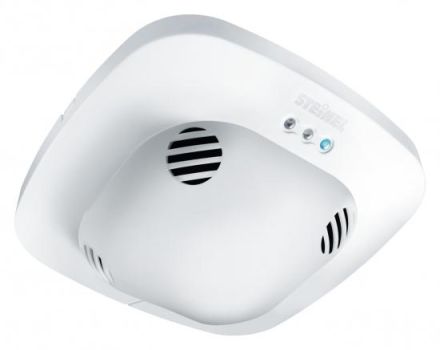

Steinel 007935 Presence detector US 360 COM1

Steinel 007935 Presence detector US 360 COM1

In stock

SKU: 435617

Price on request

€175.95

€0

Overview

Detects without obstacles. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, storage rooms and classrooms. 36 sqm presence area, knows no obstacles, encloses objects but does not penetrate them, temperature-independent detection, electronically adjustable range, COM1 for switching lights.

Property	Value
Width:	120 mm
Height:	120 mm
Voltage type:	AC
Protection class (IP):	IP20
Min. Duty cycle:	30 s
Max. duty cycle:	30 min
Max. inrush current:	800 A
Max. range to one side:	3 m
Max. presence area:	6 m²
Max. Frontal range:	3 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9010
Material:	Plastic
Mounting height:	2.8 m
Mounting type:	Flush-mounted
Response brightness:	10 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-25 to 55 °C
Response sensitivity adjustable:	yes
Sensor type:	Ultrasonic
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	10 m
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	yes
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Min. inrush current:	0.1 A
Installation length:	31 mm
Min. Depth of the device box:	66 mm

Characteristics

Bridging switchYes

With signal unitYes

Response brightness10 to 1000 lx

Forced shutdownYes

Max. inrush current800 A

Forced switching onYes

Max. presence range6 m²

Manufacturer

HAN007935

GTIN4007841007935

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Width120 mm

Installation length31 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height120 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal3m

Max. range to one side3m

Min. duty cycle30s

Min. depth of the device box66 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Surface protectionOther

RAL number (similar)9010

IP protection)IP20

Sensor typeUltrasonic

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 55 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
