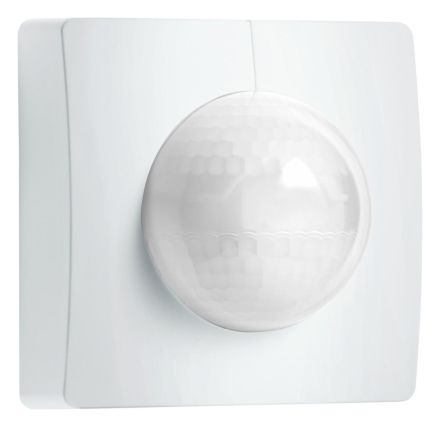

Steinel 009113 motion detector IS 3180-Square COM1 AP white

Steinel 009113 motion detector IS 3180-Square COM1 AP white

In stock

SKU: 435629

Price on request

€104.65

€0

Overview

For large areas! Infrared motion detector IS 3180 for inside and outside, ideal for monitoring large areas, ideal installation height of 2 m, 180° detection angle, range setting max. 20 m or max. 8 m (tangential), large connection space for easy installation, powerful relay for high switching capacity.

Property	Value
Width:	95 mm
Height:	95 mm
Voltage type:	AC
Protection class (IP):	IP54
Min. Duty cycle:	5 s
Max. duty cycle:	15 min
Max. inrush current:	110 A
Max. range to one side:	20 m
Max. Frontal range:	20 m
Horizontal detection angle:	180 °
Color:	white
RAL number (similar):	9003
Material:	Plastic
Mounting height:	2 m
Mounting type:	Surface-mounted
Response brightness:	2 to 1000 lx
Response brightness adjustable:	yes
Creep protection:	yes
Temperature:	-20 to 50 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	8 m
Number of Switching zones:	448
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	yes
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	other
Antibacterial treatment:	no
Min. Inrush current:	0.01 A

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones448

Response brightness2 to 1000 lx

Forced shutdownYes

Max. inrush current110 A

Forced switching onYes

Manufacturer

HAN009113

GTIN4007841009113

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Width95 mm

Detection angle horizontal180°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height95 mm

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal20m

Max. range to one side20m

Min. duty cycle5s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Surface protectionOther

RAL number (similar)9003

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
