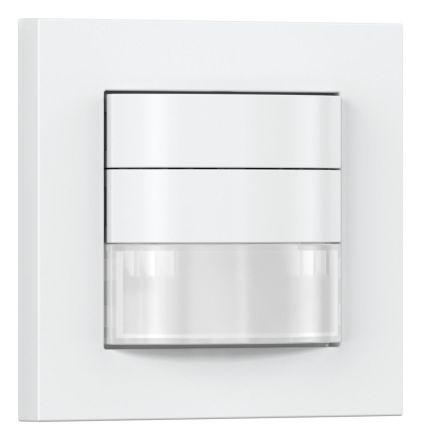

Steinel 032883 HF 180 COM1 WS HF180COM1WS motion detector

Steinel 032883 HF 180 COM1 WS HF180COM1WS motion detector

In stock

SKU: 482728

Price on request

€120.75

€0

Overview

Also detects reliably through partition walls. Presence switch HF 180. The high-frequency sensor detects every movement quickly and regardless of the temperature, even through partition walls, e.g. in offices, vestibules or toilets. 180° detection angle, up to 8 m range. Intelligent technology, top-class design, simple 3-wire installation.

Property	Value
Width:	80 mm
Height:	80 mm
Voltage type:	AC
Protection class (IP):	IP20
Min. Duty cycle:	30 s
Max. duty cycle:	30 min
Max. inrush current:	10 A
Max. range to one side:	8 m
Max. Frontal range:	8 m
Horizontal detection angle:	180 °
Color:	white
RAL number (similar):	9010
Material:	Plastic
Mounting height:	1.2 m
Mounting type:	Flush-mounted
Response brightness:	2 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	0 to 40 °C
Response sensitivity adjustable:	yes
Sensor type:	high frequency
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	16 m
Number of switching zones:	96
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	yes
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	other
Antibacterial treatment:	no
Min. Inrush current:	0.1 A
Installation length:	9 mm
Min. depth of device box:	66 mm

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones96

Response brightness2 to 1000 lx

Forced shutdownYes

Max. inrush current10 A

Forced switching onYes

Manufacturer

HAN032883

GTIN4007841032883

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Width80 mm

Installation length9 mm

Detection angle horizontal180°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height80 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal8m

Max. range to one side8m

Min. duty cycle30s

Min. depth of the device box66 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Surface protectionOther

RAL number (similar)9010

IP protection)IP20

Sensor typeHigh frequency

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 40 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
