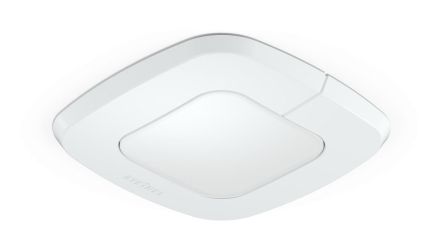

Steinel 032951 IR QUATTRO SLIM XS COM1 presence detector 360° AP white with IP20

Steinel 032951 IR QUATTRO SLIM XS COM1 presence detector 360° AP white with IP20

In stock

SKU: 482880

Price on request

€136.85

€0

Overview

Striking. Unobtrusive. IR Quattro SLIM XS, the extra-flat presence detector in flush-mounted box format. Fits into any standard flush-mounted box. Only 6 mm installation height. High-precision 360° infrared sensor with a globally unique retina lens and 16 sqm square presence area (4 x 4 m). Setting via remote control or Smart Remote.

Property	Value
Width:	80 mm
Height:	80 mm
Voltage type:	AC
Protection class (IP):	IP20
Min. duty cycle:	60 s
Max. duty cycle:	30 min
Max. Range to one side:	2 m
Max. presence area:	4 m²
Max. Frontal range:	2 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9010
Material:	Plastic
Mounting height:	2.8 m
Mounting type:	Flush-mounted
Response brightness:	10 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	0 to 40 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	4 m
Number of Switching zones:	408
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	no
Bypass switch:	yes
Suitable for wireless transmission:	yes
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	yes
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Installation length:	48 mm
Min. Depth of the device box:	66 mm

Characteristics

Bridging switchYes

With signal unitNo

Number of switching zones408

Response brightness10 to 1000 lx

Forced shutdownYes

Forced switching onYes

Max. presence range4 m²

Manufacturer

HAN032951

GTIN4007841032951

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Width80 mm

Installation length48 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionYes

HVAC controlNo

Halogen freeYes

Height80 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal2m

Max. range to one side2m

Min. duty cycle60s

Min. depth of the device box66 mm

With DALI interfaceNo

With remoteYes

Mounting typeFlush-mounted

Extension inputNo

Surface protectionOther

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 40 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
