Steinel 033583 IS 3360 MX PF AP motion detector

Steinel 033583 IS 3360 MX PF AP motion detector

In stock

SKU: 482952

Price on request

€134.55

€0

Overview

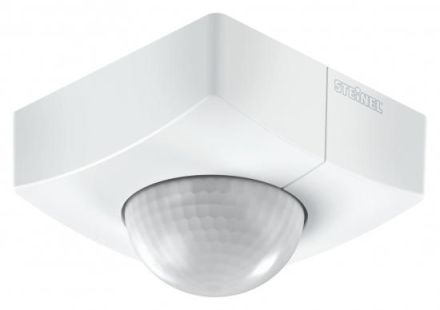

No fear of heights. Long range. Reliable. Motion detector IS 3360 MX Highbay ideal for high ceilings in industrial halls or commercial properties. For installation heights of up to 14 m. High-precision 360° infrared sensor. Maximum range: 18 m. For monitoring up to 1000 sqm. Available as a square surface-mounted and flush-mounted version.

Property	Value
Width:	95 mm
Height:	95 mm
Voltage type:	AC
Protection class (IP):	IP54
Min. duty cycle:	5 s
Max. duty cycle:	15 min
Max. Inrush current:	110 A
Max. range to one side:	18 m
Max. Frontal range:	18 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9003
Material:	Plastic
Mounting height:	12 m
Mounting type:	Surface-mounted
Response brightness:	2 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-20 to 50 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	14 m
Number of switching zones:	1416
Halogen-free:	yes
Constant light control:	no
HVAC control:	yes
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	yes
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Min. inrush current:	0.1 A

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones1416

Response brightness2 to 1000 lx

Forced shutdownYes

Max. inrush current110 A

Forced switching onYes

Manufacturer

HAN033583

GTIN4007841033583

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Width95 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height95 mm

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal18m

Max. range to one side18m

Min. duty cycle5s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Surface protectionOther

RAL number (similar)9003

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
