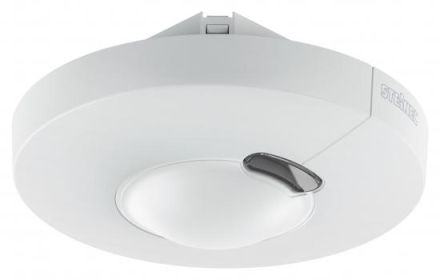

Steinel 033682 HF 3360-R COM1 HF3360RCOM1 motion detector

Steinel 033682 HF 3360-R COM1 HF3360RCOM1 motion detector

In stock

SKU: 482720

Price on request

€120.75

€0

Overview

Nothing can stop it. High-frequency motion detector HF 3360, ideal for basements, stairwells, parking garages, mounting height 2.8 m, 360° detection, range 1.8 m (radial), temperature-independent detection, HF sensor technology also penetrates glass, wood and lightweight walls, powerful relay ensures high switching capacity. Available in round and square surface-mounted and flush-mounted versions.

Property	Value
Voltage type:	AC
Protection class (IP):	IP20
Min. duty cycle:	5 s
Max. Duty cycle:	15 min
Max. inrush current:	110 A
Max. range to one side:	4 m
Max. Frontal range:	4 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9003
Material:	Plastic
Mounting height:	2.8 m
Mounting type:	Flush-mounted
Response brightness:	2 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-20 to 50 °C
Response sensitivity adjustable:	yes
Sensor type:	high frequency
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	8 m
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Installation length:	25 mm
Min. depth of the device box:	66 mm

Characteristics

Bridging switchYes

With signal unitYes

Response brightness2 to 1000 lx

Forced shutdownYes

Max. inrush current110 A

Forced switching onYes

Manufacturer

HAN033682

GTIN4007841033682

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Installation length25 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal4m

Max. range to one side4m

Min. duty cycle5s

Min. depth of the device box66 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Surface protectionOther

RAL number (similar)9003

IP protection)IP20

Sensor typeHigh frequency

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
