Steinel 034733 IS 2360 DE ECO WS presence detector recessed white 180-360° 2.5m

Steinel 034733 IS 2360 DE ECO WS presence detector recessed white 180-360° 2.5m

In stock

SKU: 482899

Price on request

€60.95

€0

Overview

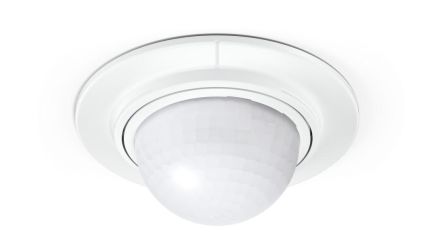

Intelligent technology for installation. Infrared motion detector IS 2360 DE ECO, for indoor and outdoor use, ideal for installation in canopies and suspended ceilings, 360° detection angle, range up to 4 m, time and twilight threshold adjustable, detection area can be restricted using cover panels.

Property	Value
Voltage type:	AC
Protection class (IP):	IP54
Min. duty cycle:	8 s
Max. duty cycle:	35 min
Max. Range to one side:	4 m
Max. Frontal range:	4 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9010
Material:	plastic
Installation height:	2.5 m
Installation type:	other
Response brightness:	2 to 2000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-20 to 40 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	4 m
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Automatic stair light:	no
Bypass switch:	yes
Suitable for wireless Transmission:	no
Remote controllable:	no
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Installation depth:	54 mm
Installation length:	58 mm
Installation diameter:	65 mm

Characteristics

Bridging switchYes

With signal unitYes

Response brightness2 to 2000 lx

Forced shutdownNo

Forced switching onNo

Manufacturer

HAN034733

GTIN4007841034733

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Installation diameter65 mm

Installation length58 mm

Installation depth54 mm

Detection angle horizontal360°

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlNo

Max. duty cycle35 min

Max. range frontal4m

Max. range to one side4m

Min. duty cycle8s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Surface protectionOther

RAL number (similar)9010

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-20 to 40 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
