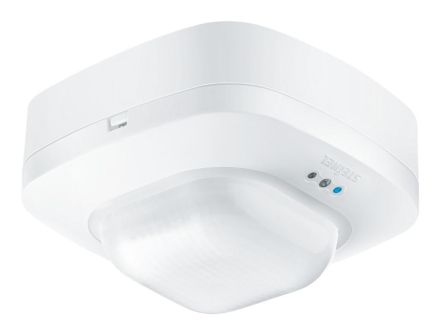

Steinel 035273 IR Quattro HD DALIpl presence detector

Steinel 035273 IR Quattro HD DALIpl presence detector

In stock

SKU: 482875

Price on request

€236.90

€0

Overview

The entry into intelligent lighting control. Intelligent infrared presence detector IR Quattro HD DALI plus with extensive additional functions, ideal for classrooms, open-plan offices and parking garages, installation height up to 10 m, with three light channels (DALI addressable) for up to 64 lights, easy to set up via app. Additional potential-free relay, constant light control and variable basic light functions, button interface for all 3 light channels for pressing and dimming as well as for the potential-free relay (light operation), can be controlled remotely via Smart Remote.

Property	Value
Width:	120 mm
Height:	120 mm
Voltage type:	AC
Protection class (IP):	IP20
Min. duty cycle:	5 s
Max. Duty cycle:	60 min
Max. inrush current:	10 A
Max. range to one side:	10 m
Max. presence area:	8 m²
Max. Frontal range:	10 m
Horizontal detection angle:	360 °
Color:	white
RAL number (similar):	9010
Material:	Plastic
Mounting height:	2.8 m
Mounting type:	Surface-mounted
Response brightness:	10 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	0 to 40 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	8 m
Control current:	150 mA
Number of switching zones:	4800
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair lighting:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	yes
Teach function for response brightness:	yes
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Min. inrush current:	0.1 A
Installation length:	25 mm

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones4800

Response brightness10 to 1000 lx

Forced shutdownYes

Max. inrush current10 A

Forced switching onYes

Max. presence range8 m²

Manufacturer

HAN035273

GTIN4007841035273

Dimming function with dimming insertYes

Alarm functionYes

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Width120 mm

Installation length25 mm

Detection angle horizontal360°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height120 mm

Constant light controlYes

Max. duty cycle60 min

Max. range frontal10m

Max. range to one side10m

Min. duty cycle5s

With DALI interfaceYes

With remoteNo

Mounting typeSurface-mounted

Extension inputYes

Surface protectionOther

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 40 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
