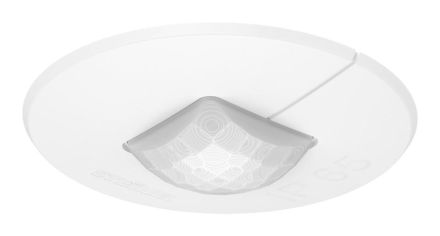

Steinel 053789 IR Quattro Micro COM presence detector

In stock
SKU: 482873
€111.55
Into a basketIn the basketGo

Overview

Small sensor. Great performance. The IR Quattro MICRO fulfils the wish of many architects and planners for a sensor that is as inconspicuous as possible. It impresses with its small installation dimensions, low installation height and a micro-precision lens (15 x 15 mm). The small 360° infrared presence detector makes a big impression and detects 36 m2. Thanks to IP65 validation, it is also suitable for damp rooms.

Property Value
Voltage type: AC
Protection class (IP): IP65
Min. duty cycle: 5 s
Max. Duty cycle: 60 min
Max. inrush current: 10 A
Max. range to one side: 3 m
Max. presence area: 4 m²
Max. Frontal range: 3 m
Horizontal detection angle: 360 °
Color: white
RAL number (similar): 9003
Material: plastic
Installation height: 2.8 m
Installation type: other
Response brightness: 2 to 1000 lx
Response brightness adjustable: yes
Creep-under protection: yes
Temperature: -25 to 55 °C
Response sensitivity adjustable: no
Sensor type: passive infrared
Surface protection: other
Material quality: Thermoplastic
Diameter of detection field on floor: 4 m
Number of switching zones: 168
Halogen-free: yes
Constant light control: no
Forced shutdown: yes
Animal corridor: no
Networkable: yes
Automatic stair light: no
Bypass switch: yes
Suitable for wireless Transmission: no
Remote controllable: yes
With signal unit: yes
Alarm function: no
Teach function for response brightness: yes
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: yes
With DALI interface: yes
Extension input: yes
Forced switching on: yes
Suitable for ceiling mounting: yes
Connection type: other
Antibacterial treatment: no
Min. Inrush current: 0.1 A
Installation length: 68 mm

Characteristics

Bridging switchYes
With signal unitYes
Number of switching zones168
Response brightness2 to 1000 lx
Forced shutdownYes
Max. inrush current10 A
Forced switching onYes
Max. presence range4 m²
ManufacturerSTEINEL
HAN053789
GTIN4007841053789
Dimming function with dimming insertNo
Alarm functionNo
Connection typeOther
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo
Installation length68 mm
Detection angle horizontal360°
ColorWhite
Remote controllableYes
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wireless transmissionNo
Halogen freeYes
Constant light controlNo
Max. duty cycle60 min
Max. range frontal3m
Max. range to one side3m
Min. duty cycle5s
With DALI interfaceYes
With remoteNo
Mounting typeOther
Extension inputYes
Surface protectionOther
RAL number (similar)9003
IP protection)IP65
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 55 °C
Animal corridorNo
TransparentNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
