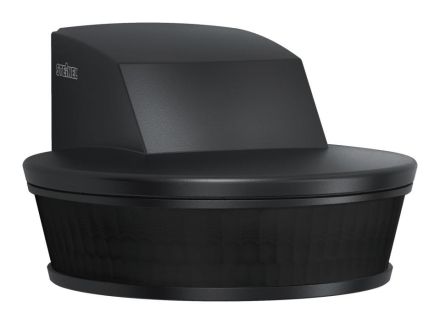

Steinel 056650 056650 SensIQ S ANTH EVO motion detector

Steinel 056650 056650 SensIQ S ANTH EVO motion detector

In stock

SKU: 482726

Price on request

€143.75

€0

Into a basketIn the basketGo

Overview

056650 SensIQ S ANTH EVO motion detector

Property	Value
Width:	114 mm
Height:	74 mm
Voltage type:	AC
Protection class (IP):	IP54
Min. duty cycle:	5 s
Max. duty cycle:	15 min
Max. Inrush current:	800 A
Max. range to one side:	20 m
Max. Frontal range:	20 m
Horizontal detection angle:	300 °
Color:	anthracite
RAL number (similar):	7016
Material:	Plastic
Mounting height:	2 m
Mounting type:	Surface-mounted
Response brightness:	2 to 1000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-20 to 50 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	8 m
Number of switching zones:	1360
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	yes
Bridging switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With Remote control:	yes
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	other
Antibacterial treatment:	no
Min. Inrush current:	0.1 A

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones1360

Response brightness2 to 1000 lx

Forced shutdownYes

Max. inrush current800 A

Forced switching onYes

Manufacturer

HAN056650

GTIN4007841056650

Dimming function with dimming insertNo

Alarm functionNo

Connection typeOther

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Width114 mm

Detection angle horizontal300°

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height74 mm

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal20m

Max. range to one side20m

Min. duty cycle5s

With DALI interfaceNo

With remoteYes

Mounting typeSurface-mounted

Extension inputYes

Surface protectionOther

RAL number (similar)7016

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

Animal corridorNo

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
