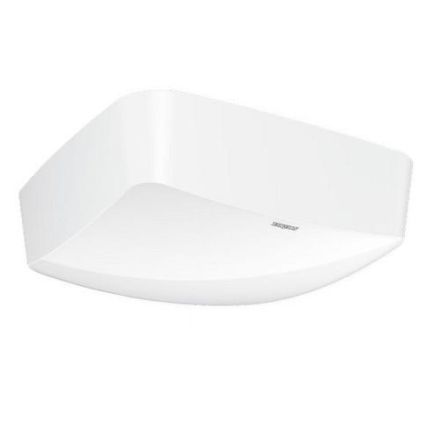

Steinel 057930 COM2 AP presence detector

In stock
SKU: 525038
€284.05
Into a basketIn the basketGo

Overview

The world's first real presence detector. No more unnecessary follow-up time - no more unnecessary electricity costs. 100 percent reliable detection through the finest high-frequency measurement of the environment. The True Presence detector reliably detects the presence or absence of people on an area of 64 m2 - through physical micro-movements caused by human vital functions such as the up and down movement of the chest or shoulders caused by breathing. The new standard in building automation. Easily controllable via app via Bluetooth.

Property Value
Width: 123 mm
Height: 123 mm
Voltage type: AC
Protection class (IP): IP54
Min. duty cycle: 20 s
Max. duty cycle: 60 min
Max. Inrush current: 800 A
Max. range to one side: 7.5 m
Max. presence area: 15 m²
Max. Frontal range: 7.5 m
Horizontal detection angle: 360 °
Color: white
RAL number (similar): 9003
Material: Plastic
Mounting height: 2.8 m
Mounting type: Surface-mounted
Response brightness: 2 to 2000 lx
Response brightness adjustable: yes
Creep-under protection: yes
Temperature: -20 to 50 °C
Response sensitivity adjustable: yes
Sensor type: high frequency
Surface protection: other
Material quality: Thermoplastic
Diameter of detection field on floor: 15 m
Halogen-free: yes
Constant light control: no
HVAC control: yes
Forced shutdown: yes
Animal corridor: no
Networkable: yes
Automatic stair light: yes
Bypass switch: yes
Suitable for wireless transmission: yes
Remote controllable: yes
With signal unit: yes
Alarm function: no
Teach function for response brightness: yes
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: yes
With DALI interface: no
Forced switching on: yes
Suitable for ceiling mounting: yes
Connection type: other
Antibacterial treatment: no
Min. inrush current: 0.1 A

Characteristics

Bridging switchYes
With signal unitYes
Response brightness2 to 2000 lx
Forced shutdownYes
Max. inrush current800 A
Forced switching onYes
Max. presence range15 m²
HABCOM2 AP
ManufacturerSTEINEL
HAN057930
GTIN4007841057930
Dimming function with dimming insertNo
Alarm functionNo
Connection typeOther
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
Width123 mm
Detection angle horizontal360°
ColorWhite
Remote controllableYes
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wireless transmissionYes
HVAC controlYes
Halogen freeYes
Height123 mm
Constant light controlNo
Max. duty cycle60 min
Max. range frontal7.5m
Max. range to one side7.5m
Min. duty cycle20s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Surface protectionOther
RAL number (similar)9003
IP protection)IP54
Sensor typeHigh frequency
Voltage typeAC
Teach function for response brightnessYes
Temperature-20 to 50 °C
Animal corridorNo
TransparentNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
