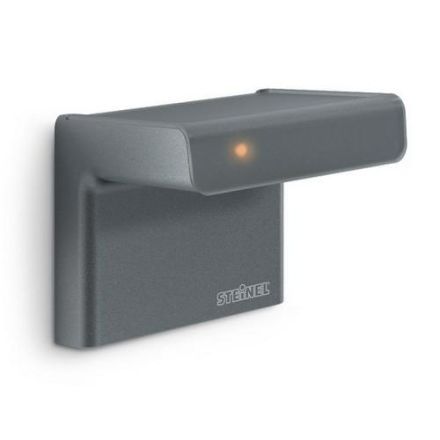

Steinel 066178 IHF 3D SENSOR ANT COM1 motion detector

Steinel 066178 IHF 3D SENSOR ANT COM1 motion detector

In stock

SKU: 769165

Price on request

€175.95

€0

Into a basketIn the basketGo

Overview

IHF 3D SENSOR ANT COM1 motion detector

Property	Value
Width:	117 mm
Height:	120 mm
Voltage type:	AC
Protection class (IP):	IP54
Min. duty cycle:	5 s
Max. duty cycle:	60 min
Max. Range to one side:	5 m
Max. Frontal range:	5 m
Horizontal detection angle:	160 °
Color:	anthracite
RAL number (similar):	7016
Material:	Plastic
Mounting height:	1.8 m
Mounting type:	Surface-mounted
Response brightness:	2 to 2000 lx
Response brightness adjustable:	yes
Creep-under protection:	yes
Temperature:	-20 to 50 °C
Response sensitivity adjustable:	yes
Sensor type:	high frequency
Surface protection:	other
Material quality:	Thermoplastic
Diameter of detection field on floor:	10 m
Halogen-free:	yes
Constant light control:	no
Forced shutdown:	yes
Networkable:	yes
Automatic stair lighting:	no
Bypass switch:	yes
Remote control:	yes
Teach function for response brightness:	yes
Dimming function with Dimming insert:	no
Transparent:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	other
Antibacterial treatment:	no

Characteristics

Bridging switchYes

Response brightness2 to 2000 lx

Forced shutdownYes

Forced switching onYes

HABIHF 3D SENSOR ANT COM1

Manufacturer

HAN066178

GTIN4007841066178

Dimming function with dimming insertNo

Connection typeOther

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Width117 mm

Detection angle horizontal160°

Color

Remote controllableYes

Suitable for ceiling mountingNo

Halogen freeYes

Height120 mm

Constant light controlNo

Max. duty cycle60 min

Max. range frontal5 m

Max. range to one side5 m

Min. duty cycle5s

Mounting typeSurface-mounted

Surface protectionOther

RAL number (similar)7016

IP protection)IP54

Sensor typeHigh frequency

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 50 °C

TransparentNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
