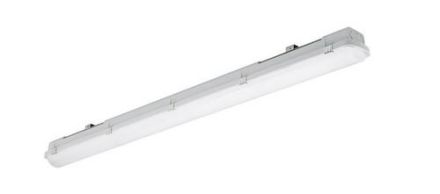

Feilo Sylvania 0010224 Resisto 1200 IP66 DALI 21W 2800lm 840 LED waterproof luminaire

Feilo Sylvania 0010224 Resisto 1200 IP66 DALI 21W 2800lm 840 LED waterproof luminaire

In stock

SKU: 878918

Price on request

€197.06

€0

Into a basketIn the basketGo

Overview

Resisto 1200 IP66 DALI 2800lm 840

Property	Value
System power:	20 W
Luminous flux:	2800 lm
Length:	1200 mm
Width:	87 mm
Height/depth:	80 mm
Protection type (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Nominal voltage:	220 to 240 V
Housing colour:	grey
Housing material:	plastic
Colour temperature:	4000 K
Impact resistance:	IK08
Colour rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With Light source:	yes
Light source:	LED replaceable
Temperature:	-20 to 40 °C
Connection type:	Plug terminal
With operating device:	yes
Cover material:	other
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	no
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for Recessed installation:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Rated service life:	100,000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	140 lm/W
Power factor:	0.98
Wiring type:	Termination
Housing surface protection:	untreated
Nominal current:	83.3 to 92.8 mA
Replaceable control gear:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM5
Max. Number of luminaires circuit breaker B16:	22
Max. Number of lights Circuit breaker C16:	36
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	9
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	22
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Total harmonic distortion (THD)9

HABResisto 1200 IP66 21W 2800lm 840

Manufacturer

HAN0010224

GTIN5410288102245

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Width87 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM5

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorGray

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth80 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.98

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

Luminaire luminous efficacy140lm/W

LampsLED replaceable

Luminous flux2800lm

Light distributorDiffuser lens/optics/panel

Length1200 mm

Max. number of luminaires Circuit breaker B1622

Max. number of luminaires Circuit breaker C1636

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current83.3 to 92.8 mA

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Impact resistanceIK08

IP protection)IP66

Protection classI

Voltage typeAC/DC

System performance20W

Temperature-20 to 40 °C

Cover materialOther

Housing materialPlastic

Feilo Sylvania 0010224 Resisto 1200 IP66 DALI 21W 2800lm 840 LED waterproof luminaire
