Total harmonic distortion (THD)20

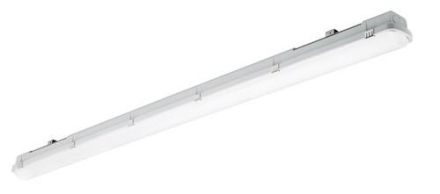

HABResisto 1500 IP66 52W 7100lm 840
HAN0010244
GTIN5410288102443
Connection typeCable
Type of wiringDiploma
Beam angle adjustableNo
Replaceable operating deviceYes
Operation via BluetoothNo
Suitable for computer workstations according to EN 12464-1No
Glare limitation (UGR)25
Width87 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DALI-2No
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color temperature adjustableNo
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Housing colorGray
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth80 mm
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Power factor1
Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes
Luminaire luminous efficacy138lm/W
Luminous flux7600lm
Light distributorDiffuser lens/optics/panel
Length1500 mm
Max. number of luminaires Circuit breaker B1639
Max. number of luminaires Circuit breaker C1639
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Rated current229.2 to 250 mA
Emergency power supply integratedNo
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Impact resistanceIK08
IP protection)IP66
Protection classI
System performance55W
Temperature-20 to 40 °C
Cover materialOther
Housing materialPlastic
