Total harmonic distortion (THD)20
Connectable conductor cross-section0.5 to 1.5 mm²
Rated luminous flux1525 lm

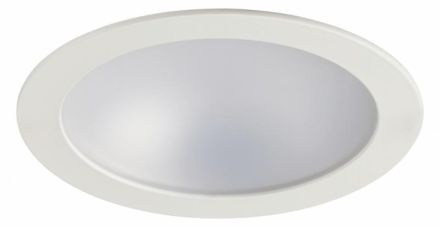

HABStart 175 IP44 15W 1525lm 840
HAN0030327
GTIN5410288303277
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringWith through wiring
Beam angleWide beam 41-80°
Beam angle adjustableNo
Replaceable operating deviceYes
Outer diameter193 mm
Rated lifetime L70/B50 at 25 °C100000 hours
Rated ambient temperature according to IEC 62722-2-1-10 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Glare limitation (UGR)25
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DALI-2No
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color temperature adjustableNo
Color rendering index CRI80-89
Suitable for number of light sources1
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorOther
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth55 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Power factor0.9
Conductor cross-section1.5 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
Luminaire luminous efficacy102lm/W
LampsLED replaceable
Light emissionDirect
Light colorWhite
Luminous flux1525lm
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B1620
Max. number of luminaires Circuit breaker C1634
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Emergency power supply integratedNo
Brushed surfaceNo
Surface protectionUntreated
Without dimming functionYes
Photobiological safety according to EN 62471RG0
ReflectorHigh gloss
Impact resistanceIK07
IP protection)IP44
Protection classII
Voltage typeAC/DC
System performance15W
AdjustabilityNot adjustable
Cover materialPlastic opal
